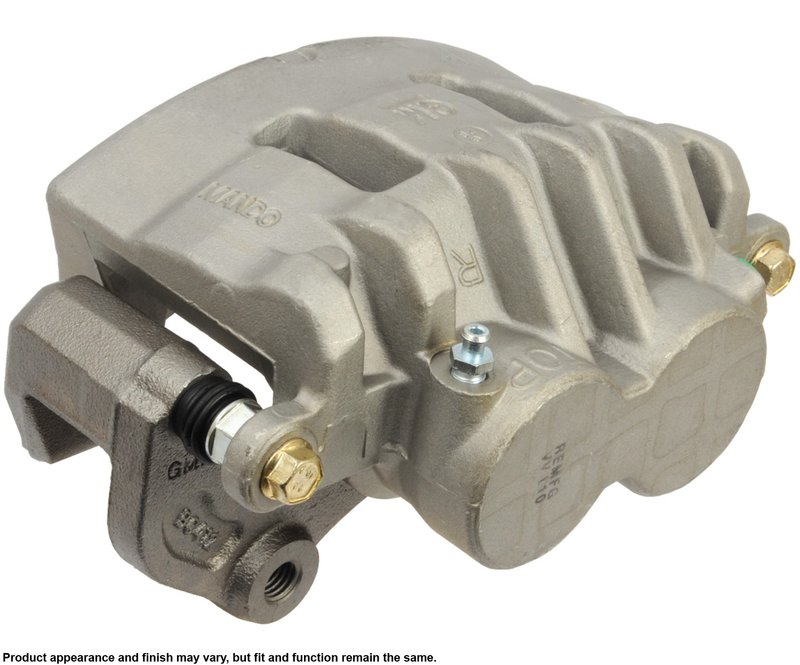

Cardone 18-B5169 Disc Brake Caliper - Front Left or Front Right

Overview of Cardone Unloaded Caliper w/Bracket for Cadillac CTS

The Cardone 18-B5169 Unloaded Caliper w/Bracket is a remanufactured disc brake caliper designed specifically for Cadillac CTS models. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with bracket included
• Compatible with Cadillac CTS vehicles
• Steel piston material with two pistons (44.96 mm diameter)
• Bleeder and inlet port size: M10x1.0
• Includes installation hardware kit (mounting bolts not included)
• Oil emulsion finish in gray for corrosion resistance

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit for installation. This line is designed to provide a cost-effective replacement option without pads, allowing for flexibility in brake pad selection. The unloaded design means the caliper is ready for installation but does not include brake pads, making it suitable for users who prefer to reuse existing pads or select aftermarket options.

Technical Description and Features

This Cardone 18-B5169 caliper features a steel piston construction with two pistons, each measuring approximately 1.77 inches (44.96 mm) in diameter, providing consistent hydraulic pressure for effective braking. The caliper is finished with an oil emulsion coating in gray, which helps resist corrosion and extends service life. Both the bleeder and inlet ports are sized M10x1.0, compatible with standard brake lines and fittings. The package includes the caliper, bracket, and a hardware kit for installation, though mounting bolts are not included.

Common Applications and Problem Solving

• Replacement for worn or leaking calipers on Cadillac CTS models
• Addresses symptoms such as low brake pedal height caused by air in the brake system
• Helps resolve uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal issues related to caliper malfunction
• Restores proper brake hydraulic function and pedal feel

Installation Notes and Tips

When installing the Cardone 18-B5169 caliper, it is recommended to use the silicone grease provided for floating caliper mounting pins to ensure smooth operation. Always use the brake fluid type specified by the vehicle manufacturer, typically DOT 3 or DOT 4, to maintain system integrity. New hardware is included with the caliper, but mounting bolts must be reused or sourced separately. Bleed the brake system thoroughly after installation to remove any air and restore proper pedal height.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. Cardone provides a limited warranty on this part, covering defects in materials and workmanship. Using this caliper ensures compatibility and reliable braking performance for Cadillac CTS vehicles requiring a disc brake caliper replacement.
