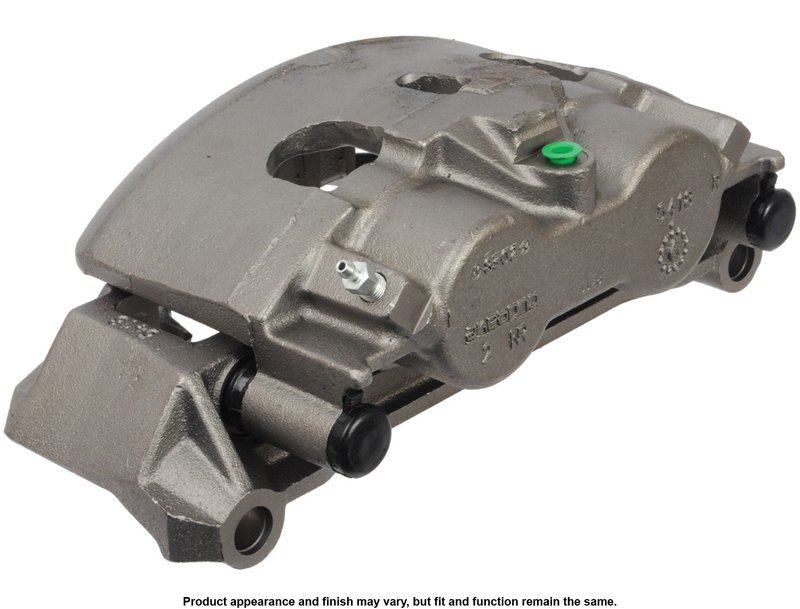

Cardone 18-B5290 Disc Brake Caliper - Rear Left

Overview of Cardone Unloaded Caliper w/Bracket 18-B5290

The Cardone Unloaded Caliper w/Bracket 18-B5290 is a remanufactured disc brake caliper designed specifically for Chevrolet Express 3500 and GMC Savana 3500 models. Engineered to meet OEM specifications, this caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with bracket included
• Phenolic piston material with two 2.12 inch (53.848 mm) pistons
• Brake caliper finished with oil emulsion in gray color
• Includes installation hardware kit (mounting bolts not included)
• Bleeder port size M10x1.0 and inlet port size M10x1.5

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware for installation. This line is designed to provide a direct replacement solution for disc brake calipers on select vehicles, including the Chevrolet Express 3500 and GMC Savana 3500. The unloaded design means brake pads are not included, allowing for flexibility in pad selection while ensuring compatibility with OEM mounting points and brake fluid specifications.

Technical Description and Features

This Cardone 18-B5290 caliper features phenolic pistons, which help reduce heat transfer to the brake fluid, minimizing the risk of brake fade. The caliper is finished with an oil emulsion coating in gray, providing corrosion resistance and durability. It includes a bleeder port sized M10x1.0 and an inlet port sized M10x1.5, compatible with standard brake lines for the specified vehicle models. The package contains the caliper, bracket, and a hardware kit for installation, though mounting bolts are not included. A silicone grease is recommended for the floating caliper mounting pins to ensure smooth operation.

Common Applications and Problem Solving

• Replaces worn or leaking disc brake calipers on Chevrolet Express 3500 and GMC Savana 3500
• Addresses symptoms such as low brake pedal height caused by air in the brake system
• Helps resolve uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper hardware or piston issues
• Restores proper brake fluid sealing and caliper piston function

Installation Notes and Tips

When installing the Cardone 18-B5290 caliper, always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Apply silicone grease to the floating caliper mounting pins to prevent binding and ensure smooth caliper movement. Although the hardware kit is included, mounting bolts are not; verify if your vehicle requires new bolts or if existing ones can be reused. Bleed the brake system thoroughly after installation to remove any air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. The phenolic pistons and oil emulsion finish contribute to long-term durability and corrosion resistance. Installation hardware is included to facilitate proper mounting. Warranty details are provided by Cardone and typically cover defects in materials and workmanship under normal use conditions.
