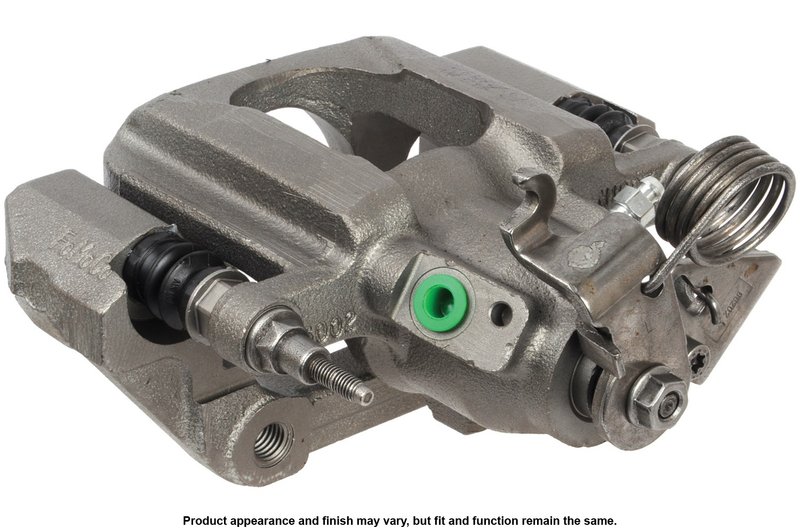

Cardone 18-B5299 Disc Brake Caliper - Rear Left

Overview of Cardone Unloaded Caliper w/Bracket 18-B5299

The Cardone Unloaded Caliper w/Bracket 18-B5299 is a remanufactured disc brake caliper designed for Ford Edge and Lincoln MKX models. Engineered with a steel piston and finished with an oil emulsion coating, this caliper ensures reliable braking performance and corrosion resistance.

• Compatible with Ford Edge and Lincoln MKX vehicles
• Remanufactured disc brake caliper with steel piston
• Includes caliper, bracket, and hardware kit for installation
• Oil emulsion finish in gray color for durability
• Bleeder and inlet port size: M10x1.0
• Installation hardware included; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the necessary bracket and hardware kit, simplifying the replacement process. This line is designed to provide a direct fit for specific vehicle applications, such as the Ford Edge and Lincoln MKX, ensuring proper alignment and function without the need for additional parts.

Technical Specifications and Features

This disc brake caliper features a single steel piston with an outer diameter of approximately 1.68 inches (42.77 mm), providing consistent braking force. The caliper is coated with an oil emulsion finish in gray, which helps protect against corrosion and wear. Both the bleeder port and inlet port are sized M10x1.0, matching OEM specifications for proper brake fluid flow. The package includes the caliper, bracket, and a hardware kit, though brake pads and mounting bolts are not included.

Common Applications and Problem Solving

• Replacement for worn or leaking calipers on Ford Edge and Lincoln MKX
• Addresses symptoms such as low brake pedal caused by air in the brake system
• Helps resolve uneven braking or vehicle pulling to one side
• Eliminates brake squeal related to caliper issues
• Restores proper brake fluid sealing and piston movement

Installation Notes and Tips

When installing the Cardone 18-B5299 caliper, use the included hardware kit for secure mounting. It is recommended to apply silicone grease on the floating caliper mounting pins to ensure smooth operation. Always use the brake fluid type specified by the vehicle manufacturer, typically DOT 3 or DOT 4. Bleed the brake system thoroughly to remove any air and restore proper pedal feel. Note that mounting bolts are not included and should be reused or replaced as needed.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. Cardone provides a warranty covering defects in materials and workmanship, offering assurance of product reliability for Ford Edge and Lincoln MKX owners. Proper installation and maintenance will help maximize the lifespan and performance of this brake caliper.
