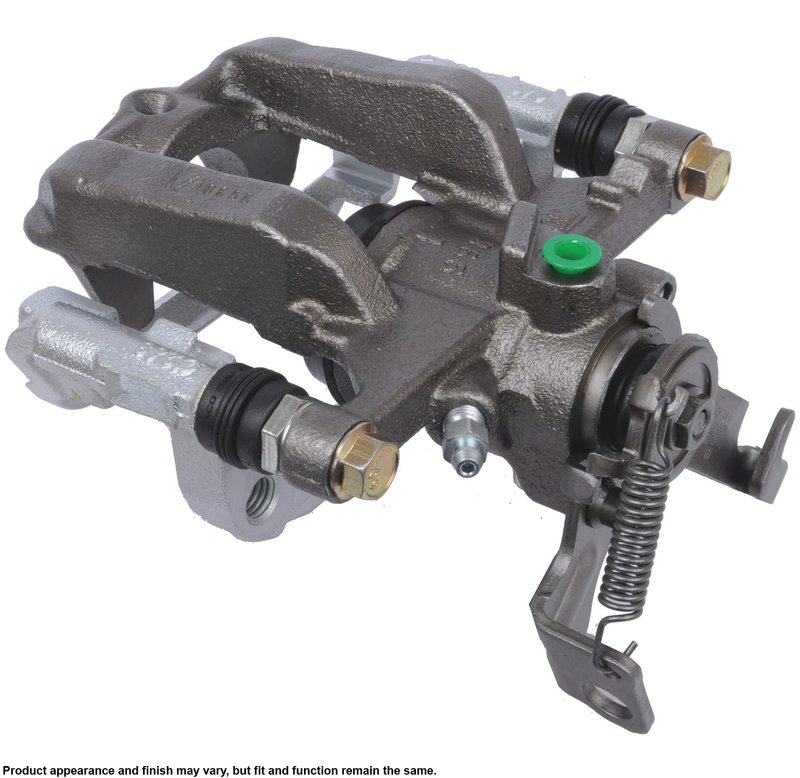

Cardone 18-B5310 Disc Brake Caliper - Rear Right

Overview of Cardone Unloaded Caliper w/Bracket 18-B5310

The Cardone Unloaded Caliper w/Bracket 18-B5310 is a remanufactured disc brake caliper designed specifically for Chevrolet Cruze and Cruze Limited models. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Compatible with Chevrolet Cruze and Cruze Limited
• Remanufactured disc brake caliper with steel piston
• Includes caliper, bracket, and hardware kit
• Bleeder port size: M10x1.0; inlet port size: M10x1.5
• Caliper finish: oil emulsion in gray color
• Installation hardware included; mounting bolts not included
• Single piston design with 1.492 inch (37.9 mm) piston diameter

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the necessary mounting bracket and hardware kit for installation. This line is designed to provide a cost-effective replacement option that maintains the original equipment fit and function. The unloaded design means the caliper does not include brake pads, allowing for flexibility in pad selection based on vehicle requirements.

Technical Description and Features

This Cardone 18-B5310 caliper features a steel piston with a diameter of 1.492 inches (37.9 mm), providing consistent hydraulic pressure for effective braking. The caliper is finished with an oil emulsion coating in gray, which offers corrosion resistance and durability. It includes a bleeder port sized M10x1.0 and an inlet port sized M10x1.5, compatible with standard brake lines for Chevrolet Cruze models. The package contains the caliper, bracket, and a hardware kit to facilitate installation, though mounting bolts are not included.

Common Applications and Problem Solving

• Replaces worn or leaking disc brake calipers on Chevrolet Cruze and Cruze Limited
• Addresses issues with low brake pedal caused by air in the brake system
• Resolves uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper malfunction
• Restores proper brake fluid pressure and pedal feel

Installation Notes and Tips

When installing the Cardone 18-B5310 caliper, use the included hardware kit for secure mounting. Note that mounting bolts are not included and should be reused or replaced as needed. It is recommended to apply silicone grease on floating caliper mounting pins to ensure smooth operation. Always use the brake fluid type specified by the vehicle manufacturer, typically DOT 3 or DOT 4. Bleed the brake system thoroughly to remove any air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. Cardone provides a limited warranty on this part, covering defects in materials and workmanship. Using this caliper helps maintain the safety and reliability of your Chevrolet Cruze or Cruze Limited braking system.
