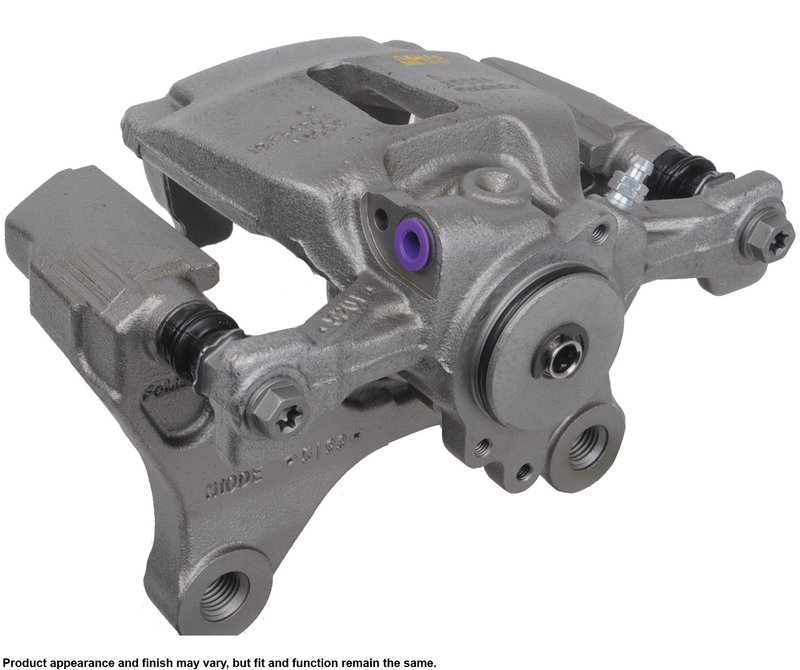

Cardone 18-B5501 Disc Brake Caliper - Rear Left

Overview of Cardone Unloaded Caliper w/Bracket for Ford F-150

The Cardone 18-B5501 Unloaded Caliper w/Bracket is a remanufactured disc brake caliper designed specifically for Ford F-150 models. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with bracket and hardware kit included
• Steel piston with a 2.123 inch (53.92 mm) outer diameter
• Bleeder and inlet port size: M10x1.0 for precise brake fluid flow
• Oil emulsion finish in gray for corrosion resistance
• Installation hardware included; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit, but without brake pads. This configuration allows for flexible installation and compatibility with existing brake pads or aftermarket options. The 18-B5501 model maintains strict adherence to OEM standards, providing a reliable replacement for Ford F-150 brake hydraulics.

Technical Description and Features

This Cardone disc brake caliper features a single steel piston measuring 2.123 inches in diameter, designed to provide consistent clamping force on the brake rotor. The caliper’s gray oil emulsion finish helps protect against rust and wear, extending service life. Both the bleeder and inlet ports use an M10x1.0 thread size, ensuring compatibility with standard brake lines and fittings. The caliper is remanufactured to restore original performance and includes a hardware kit for installation convenience, though mounting bolts are not supplied.

Common Applications and Problem Solving

• Replacement for worn or leaking calipers on Ford F-150 models
• Addresses symptoms such as low brake pedal caused by air in the brake system
• Helps resolve uneven braking or vehicle pulling to one side
• Eliminates brake squeal related to caliper malfunction
• Restores proper brake fluid flow and pressure for safe stopping

Installation Notes and Tips

When installing the Cardone 18-B5501 caliper on a Ford F-150, use the included hardware kit for secure mounting. Apply silicone grease to the floating caliper mounting pins to ensure smooth operation. Always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Bleed the brake system thoroughly to remove any air and restore firm brake pedal feel. Note that mounting bolts are not included and should be reused or replaced as needed.

Quality Assurance and Warranty

Cardone remanufactured calipers undergo rigorous testing to meet OEM performance standards. The 18-B5501 caliper is built to provide reliable braking function and durability. Installation hardware is included to facilitate proper fitment. For warranty details, refer to Cardone’s standard coverage policies applicable to remanufactured brake components.
