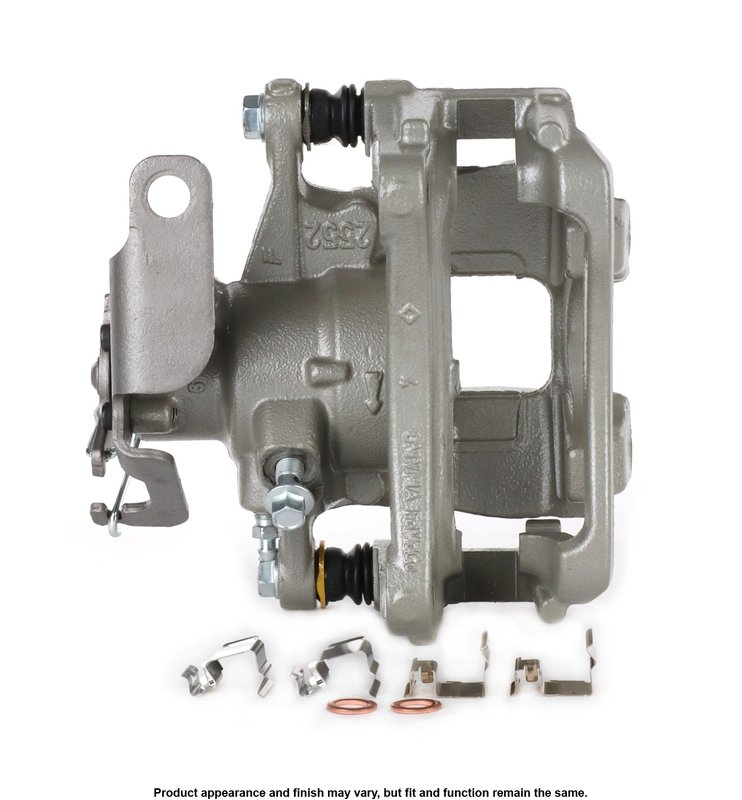

Cardone 18-B5516 Disc Brake Caliper - Rear Right

Overview of Cardone Unloaded Caliper w/Bracket 18-B5516

The Cardone Unloaded Caliper w/Bracket 18-B5516 is a remanufactured disc brake caliper designed specifically for Ford Transit models including Transit-150, Transit-250, Transit-350, and Transit-350 HD. Engineered to meet OEM specifications, this caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with bracket included
• Compatible with Ford Transit-150, Transit-250, Transit-350, and Transit-350 HD
• Steel piston with 2.125 inch (53.975 mm) diameter
• Oil emulsion finish in gray color for corrosion resistance
• Includes installation hardware kit (mounting bolts not included)
• Bleeder and inlet port size: M10x1.0

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit for installation. This line is designed to provide a cost-effective replacement option without pads included, allowing for flexibility in brake pad selection. The unloaded design means the caliper is ready for installation with all essential components except brake pads and mounting bolts, streamlining the repair process for Ford Transit vehicles.

Technical Description and Features

This Cardone 18-B5516 caliper features a single steel piston measuring 2.125 inches in diameter, providing consistent clamping force for effective braking. The caliper is finished with an oil emulsion coating in gray, which helps resist corrosion and extends service life. Both the bleeder port and inlet port are sized M10x1.0, matching OEM specifications for proper brake fluid flow. The package includes the caliper, bracket, and a hardware kit, though mounting bolts and brake pads are not included. The caliper uses silicone grease on floating caliper mounting pins to ensure smooth operation and reduce noise.

Common Applications and Problem Solving

• Replacement for worn or leaking calipers on Ford Transit-150, Transit-250, Transit-350, and Transit-350 HD
• Addresses symptoms of low brake pedal often caused by air in the brake system
• Helps resolve vehicle pulling to one side during braking due to caliper issues
• Eliminates brake squeal caused by caliper mounting pin friction
• Restores proper brake hydraulic function with OEM-compatible inlet and bleeder ports

Installation Notes and Tips

When installing the Cardone 18-B5516 caliper, use the included hardware kit for secure mounting. Note that mounting bolts are not included and must be sourced separately. Always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Apply silicone grease to the floating caliper mounting pins to prevent noise and ensure smooth caliper movement. Bleed the brake system thoroughly to remove any air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. Cardone provides a limited warranty covering defects in materials and workmanship, ensuring dependable performance for Ford Transit brake systems. Using this caliper helps maintain vehicle safety and braking reliability.
