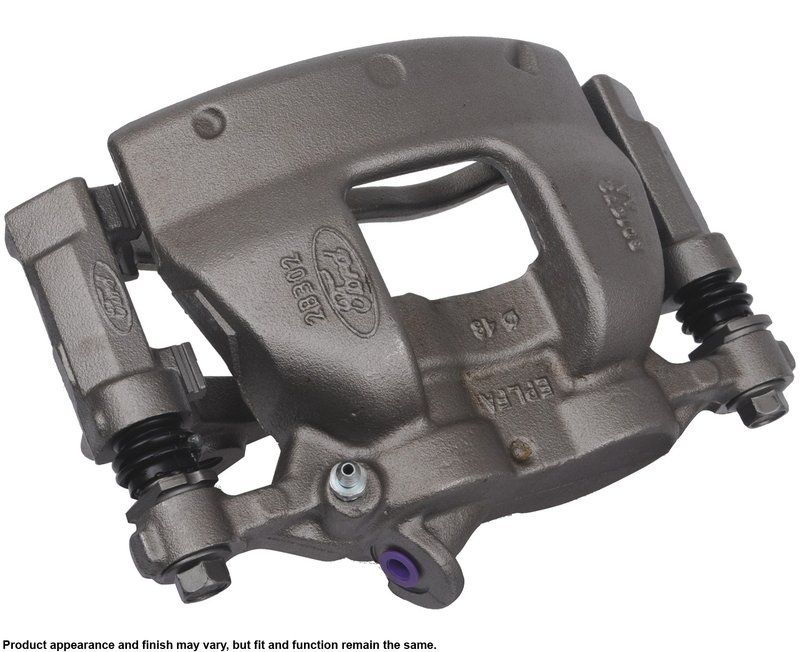

Cardone 18-B5518 Disc Brake Caliper - Front Left

Overview of Cardone Unloaded Caliper w/Bracket 18-B5518

The Cardone Unloaded Caliper w/Bracket 18-B5518 is a remanufactured disc brake caliper designed specifically for Ford Transit models including Transit-150, Transit-250, Transit-350, and Transit-350 HD. Engineered to meet OEM specifications, this caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with bracket and hardware kit included
• Compatible with Ford Transit-150, Transit-250, Transit-350, and Transit-350 HD
• Steel piston material with two pistons, each measuring 1.888 inches (47.9552 mm) in diameter
• Oil emulsion finish in gray color for corrosion resistance
• Bleeder and inlet port size: M10x1.0
• Installation hardware included; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line provides remanufactured calipers that come complete with the mounting bracket and necessary hardware kit for installation. This line is designed to simplify brake system repairs by offering a ready-to-install caliper assembly without brake pads, allowing for flexibility in pad selection. The 18-B5518 model fits select Ford Transit vehicles and maintains OEM standards for fit and function.

Technical Description and Features

This disc brake caliper features a durable steel piston construction with two pistons, each measuring approximately 1.888 inches in diameter, providing consistent clamping force for effective braking. The caliper is finished with an oil emulsion coating in gray to resist corrosion and extend service life. Both the bleeder port and inlet port are sized M10x1.0, compatible with standard brake lines and fittings. The package includes the caliper, bracket, and a hardware kit to facilitate installation, though mounting bolts are not included. This remanufactured caliper is designed to restore braking performance on Ford Transit-150, Transit-250, Transit-350, and Transit-350 HD models.

Common Applications and Problem Resolution

• Replaces worn or leaking calipers on Ford Transit-150, Transit-250, Transit-350, and Transit-350 HD
• Addresses symptoms such as low brake pedal caused by air in the brake system
• Resolves uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper issues
• Restores proper brake fluid flow and pressure with correct bleeder and inlet port sizes

Installation Notes and Tips

When installing the Cardone 18-B5518 caliper, use the included hardware kit for secure mounting. Note that mounting bolts are not included and must be sourced separately if needed. It is recommended to use the brake fluid type specified by the vehicle manufacturer, typically DOT 3 or DOT 4. Apply silicone grease on floating caliper mounting pins to ensure smooth operation. Bleed the brake system thoroughly to remove any air and achieve a firm brake pedal feel.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for performance and durability. Cardone provides a limited warranty covering defects in materials and workmanship, ensuring confidence in the product's reliability when installed on compatible Ford Transit models.
