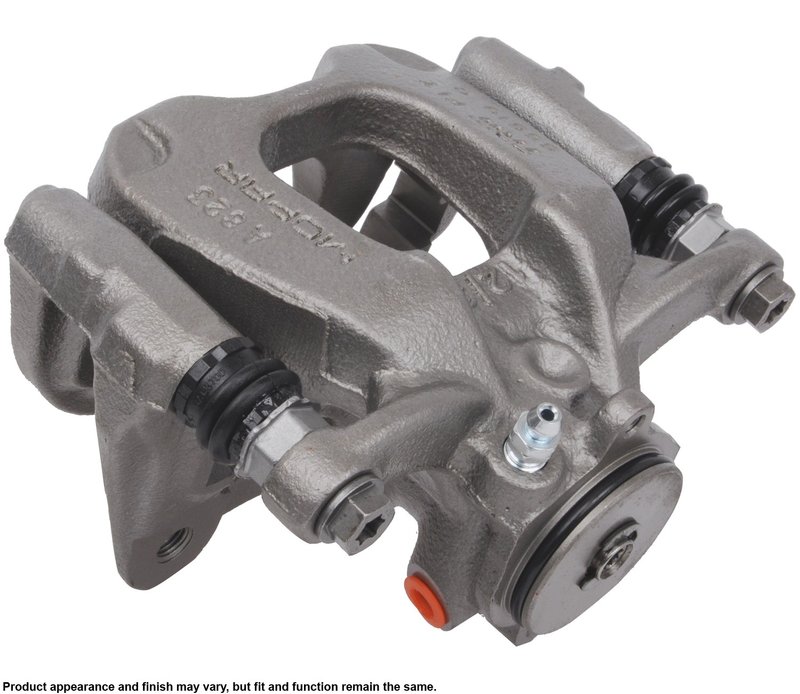

Cardone 18-B5536 Disc Brake Caliper - Rear Left

Rear Left Brake Caliper for Compass, Renegade, 500X, Hornet

Restore rear braking performance with this Cardone unloaded caliper with bracket, part number 18-B5536. It is a remanufactured disc brake caliper for the rear left position on select Jeep, Fiat, and Dodge models, including Jeep Compass, Jeep Renegade, Fiat 500X, and Dodge Hornet applications.

Key Features

• Remanufactured Original Equipment-style fit for direct replacement
• Steel piston with a 1.503 in. (38.1762 mm) bore
• Oil emulsion finish with gray caliper color
• Bracket included where applicable for easier assembly
• New bleeder screw, seals, and hardware components used in the remanufacturing process
• Plastic cap plug protects brake port threads during installation
• Inlet and bleeder port size: M10x1.0
• Package contents: caliper, bracket, and hardware kit

Product Details

Cardone 18-B5536 is part of the Unloaded Caliper w/Bracket line, built for applications that require a caliper assembly with the bracket included where applicable. The remanufacturing process replaces wear items with new premium components, including high-temperature EPDM rubber seals and durable piston materials, then pressure-tests each unit for consistent brake operation. This rear left caliper is a practical replacement for 2023-2024 Dodge Hornet, 2021-2023 Fiat 500X, 2017-2023 Jeep Compass, and 2021-2023 Jeep Renegade rear brake service.

This part cross-references Fiat and Jeep OE number 68263130AA for the same application.

Common Brake Issues It Can Address

• Rear brake drag or uneven pad wear on the left side
• Brake fluid seepage at the caliper body or bleeder area
• Corrosion-related caliper sticking from worn internal seals
• Poor brake pedal response caused by caliper hydraulic issues
• Noise or braking imbalance from a worn rear caliper assembly

Installation Notes

• Verify rear left position and confirm vehicle-specific fitment before installation.
• Use the brake fluid specified by the vehicle manufacturer and replace fluid from a sealed container.
• Bleed the brake system thoroughly after installation to remove trapped air.
• Inspect brake hoses, pads, and rotor condition before completing the repair.
• Apply silicone grease to floating caliper mounting pins where required.

Quality Assurance

Cardone remanufactures this caliper to OE fit standards and pressure-tests each unit before release. The process uses new components where needed and reduces raw material and energy use compared with manufacturing a new part.
