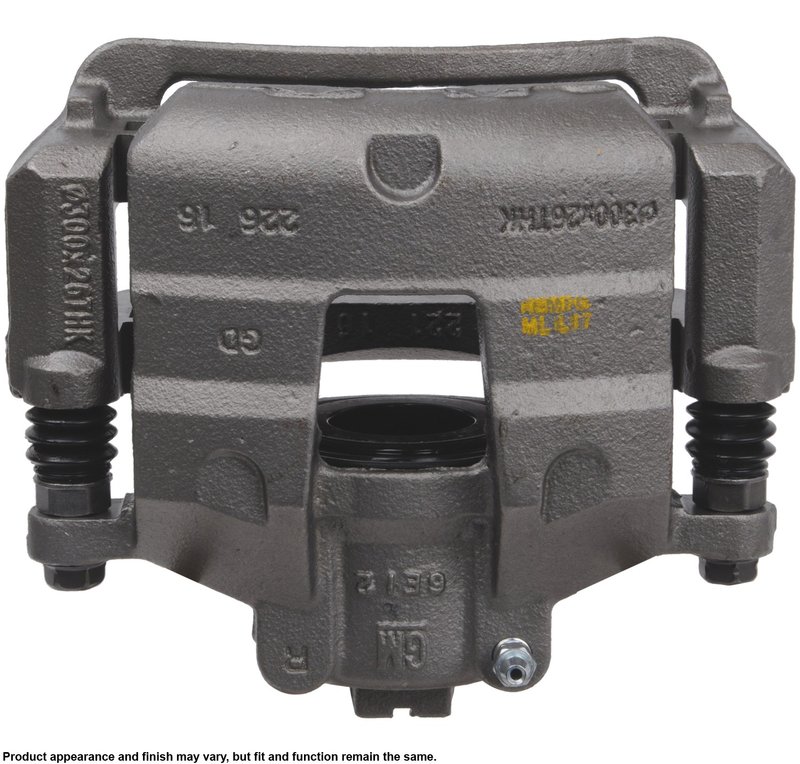

Cardone 18-B5547 Disc Brake Caliper - Front Right

Overview of Cardone Unloaded Caliper w/Bracket 18-B5547

The Cardone Unloaded Caliper w/Bracket 18-B5547 is a remanufactured disc brake caliper designed for reliable braking performance. Engineered to fit select Buick, Chevrolet, and GMC models, this caliper offers a precise fit and durable construction for vehicles like the Chevrolet Equinox and Buick LaCrosse.

• Remanufactured disc brake caliper with phenolic piston
• Includes caliper, bracket, and hardware kit for installation
• Brake caliper finished with oil emulsion in gray color
• Bleeder port size M10x1.0 and inlet port size M10x1.5
• Compatible with Buick Encore, Chevrolet Malibu, GMC Terrain, and more
• Installation hardware included; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line provides remanufactured calipers that come complete with the mounting bracket and necessary hardware kit. This setup simplifies installation by delivering a ready-to-mount assembly, reducing installation time and ensuring proper alignment. The 18-B5547 model is part of this line, designed to meet OEM specifications for fit and function on various GM vehicles.

Technical Description and Features

This disc brake caliper features a single phenolic piston measuring approximately 2.36 inches (59.9 mm) in diameter, which helps reduce heat transfer and corrosion compared to steel pistons. The caliper is finished with an oil emulsion coating in gray, providing corrosion resistance and a clean appearance. The bleeder port and inlet port sizes are M10x1.0 and M10x1.5 respectively, matching OEM brake hydraulic connections. The package includes the caliper, bracket, and a hardware kit, though brake pads and mounting bolts are not included.

Compatible Vehicles and Applications

• Buick Encore and Regal Sportback
• Chevrolet Equinox, Malibu, and Trax
• GMC Terrain

This caliper is designed for disc brake systems on these models, ensuring proper fitment and braking performance when replacing worn or damaged calipers.

Common Issues Addressed by This Caliper

• Uneven or reduced braking performance due to caliper wear
• Brake pedal feels low or spongy caused by caliper malfunction
• Vehicle pulling to one side during braking
• Brake squeal related to caliper or mounting pin issues
• Corrosion or piston sticking affecting brake operation

Installation Notes and Tips

Installation of the Cardone 18-B5547 caliper should follow OEM procedures. The included hardware kit contains necessary components except mounting bolts, which must be sourced separately. Use silicone grease on floating caliper mounting pins to ensure smooth operation. Always bleed the brake system properly to remove air and use the brake fluid type recommended by the vehicle manufacturer. Verify bleeder and inlet port sizes (M10x1.0 and M10x1.5) match your vehicle’s brake lines before installation.

Quality Assurance and Warranty

This remanufactured caliper undergoes thorough inspection and testing to meet OEM standards for fit, form, and function. Cardone provides a limited warranty covering defects in materials and workmanship. For specific warranty details, refer to Cardone’s official documentation or contact the manufacturer directly.
