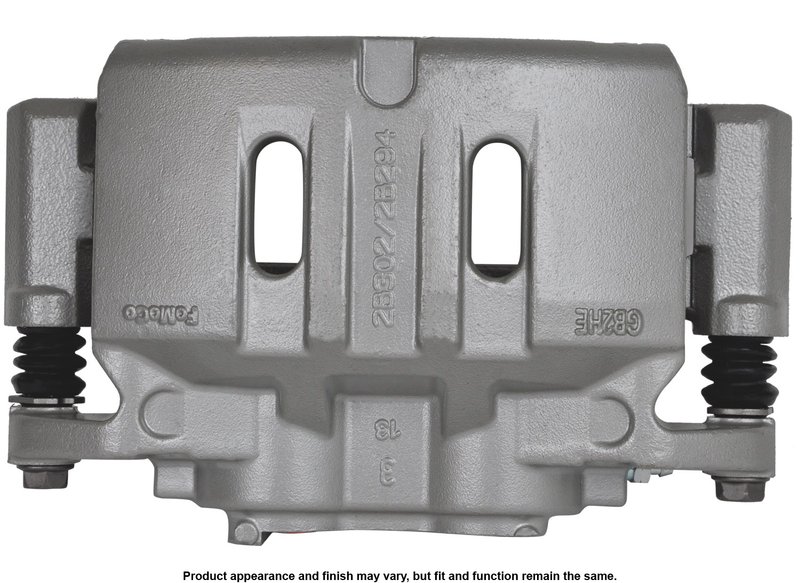

Cardone 18-B5569 Disc Brake Caliper - Front Left

Front Left Brake Caliper for Mustang

Restore consistent braking with this Cardone unloaded disc brake caliper with bracket, part number 18-B5569. It is a remanufactured front left caliper for select Ford Mustang applications, built with new premium components and pressure-tested for dependable brake performance.

Compatible with 2015-2023 Ford Mustang front left brake applications, this Cardone 18-B5569 caliper is finished in gray powder coat and includes a phenolic piston design for controlled operation and corrosion resistance.

Key Features

• Remanufactured Original Equipment-style brake caliper for precise vehicle fit
• Fits 2015-2023 Ford Mustang, front left
• Unloaded caliper with bracket for the listed applications
• Gray powder-coated finish with rust-inhibiting treatment
• Phenolic piston construction with 2 pistons and 42.77 mm piston size
• New bleeder screw, new banjo bolts where applicable, and protective port caps
• New EPDM rubber seals, stainless steel hardware clips, and mounting pins where applicable
• 100% pressure-tested before release

Product Details

Cardone’s Unloaded Caliper w/Bracket line focuses on remanufactured brake hydraulics that match OE fit and function while using new wear components where needed. For this application, the 18-B5569 is built for the front left side of the Ford Mustang and is supplied as a remanufactured brake caliper with bracket for the listed fitments. The unit uses a phenolic piston design, an M10 x 1.5 inlet port, and an M10 x 1.0 bleeder port size. This part cross-references Ford FR3Z2B121D for the same application.

Common Problems This Part Can Address

• Brake pull to one side during stopping
• Low or uneven brake pedal response caused by caliper wear or internal leakage
• Brake fluid seepage at the caliper
• Sticking or dragging front brake operation
• Corrosion-related caliper performance loss

Installation Notes and Tips

Use the correct OE-specified brake fluid for the vehicle and replace fluid from a sealed container. Clean and inspect the brake hose, pads, rotor, and mounting surfaces before installation. Floating caliper pins should be lubricated with silicone grease, and the brake system must be bled thoroughly after installation to remove air from the hydraulic circuit.

Fits 2015-2017 Ford Mustang, front left. Fits 2018-2023 Ford Mustang, front left. Search terms: Ford Mustang front left brake caliper, remanufactured Mustang caliper with bracket, Cardone 18-B5569.

Quality Assurance

Each Cardone brake caliper is remanufactured to rigorous quality standards, assembled with new premium components, and pressure-tested to verify hydraulic integrity and consistent brake performance. The remanufacturing process also reduces raw material and energy use compared with producing a new part.
