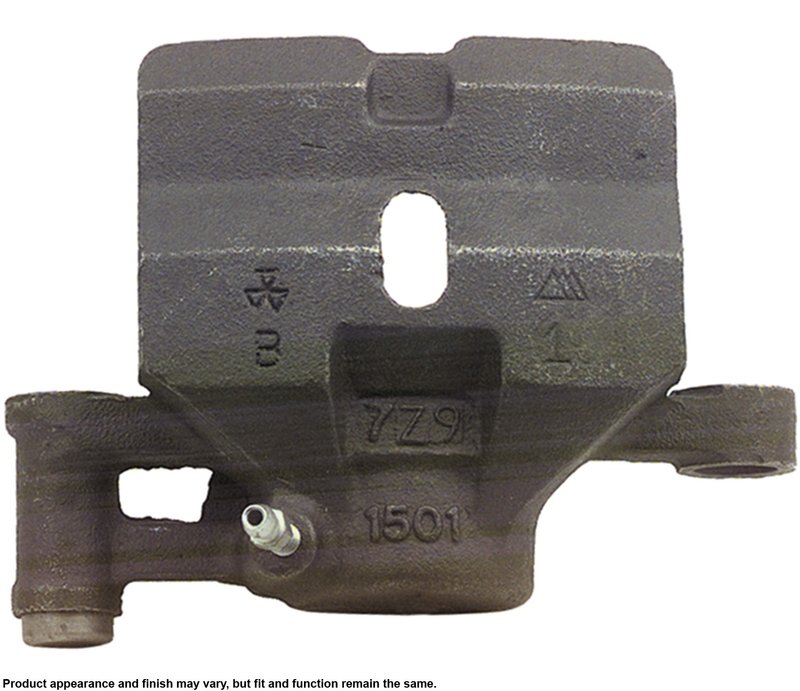

Cardone 19-106 Disc Brake Caliper - Rear Right

Overview of Cardone Unloaded Caliper 19-106 for Isuzu Impulse

The Cardone Unloaded Caliper 19-106 is a remanufactured disc brake caliper designed specifically for the Isuzu Impulse. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with steel piston
• Compatible with Isuzu Impulse models
• Includes caliper and hardware kit; mounting bolts not included
• Bleeder port size: M7x1.0; inlet port size: M10x1.0
• Caliper color: gray with oil emulsion finish for corrosion resistance
• Single piston design with 1.495 inch (37.973 mm) piston diameter

Cardone Unloaded Caliper Product Line Details

The Cardone Unloaded Caliper product line offers remanufactured brake calipers that come without brake pads installed, allowing for flexible installation with aftermarket or OEM pads. This line focuses on providing reliable hydraulic brake components that meet or exceed original equipment standards. The 19-106 caliper fits within this line, delivering a quality remanufactured option for Isuzu Impulse owners requiring disc brake caliper replacement.

Technical Description and Features

This Cardone 19-106 caliper features a single steel piston with a diameter of 1.495 inches (37.973 mm), designed to provide consistent braking force. The caliper’s gray oil emulsion finish offers protection against corrosion and wear. It includes a bleeder port sized M7x1.0 and an inlet port sized M10x1.0, compatible with standard brake lines for the Isuzu Impulse. The package contains the caliper and a hardware kit, though mounting bolts are not included. The caliper uses silicone grease on floating caliper mounting pins to ensure smooth operation and reduce noise.

Common Applications and Problem Solving

• Replacement for worn or leaking disc brake calipers on Isuzu Impulse
• Addresses symptoms such as low brake pedal caused by air in the brake system
• Helps resolve uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper hardware or piston issues
• Restores proper hydraulic pressure and brake fluid flow

Installation Notes and Tips

When installing the Cardone 19-106 caliper on an Isuzu Impulse, use the included hardware kit for secure mounting. Note that mounting bolts are not included and must be reused or sourced separately. Always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Apply silicone grease to the floating caliper mounting pins to prevent noise and ensure smooth caliper movement. Bleed the brake system thoroughly to remove any air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured Cardone Unloaded Caliper 19-106 undergoes rigorous testing to meet OEM standards for fit, form, and function. The steel piston and oil emulsion finish contribute to long-lasting performance. Cardone typically offers a limited warranty on remanufactured brake calipers; please refer to the specific warranty terms provided with the product for coverage details.
