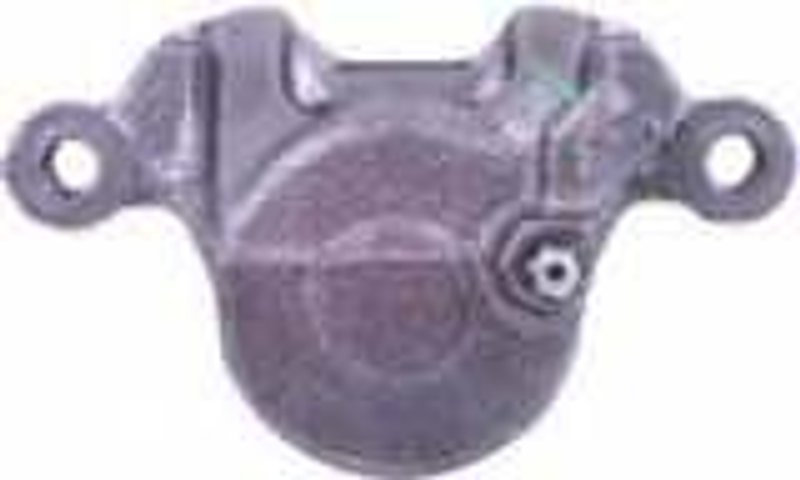

Cardone 19-1416 Disc Brake Caliper - Front Right

Overview of Cardone 19-1416 Unloaded Caliper

The Cardone 19-1416 Unloaded Caliper is a remanufactured disc brake caliper designed for select Geo and Isuzu vehicles. Engineered with a steel piston and an oil emulsion finish, this caliper offers reliable braking performance for models like the Geo Impulse, Isuzu Storm, and Stylus.

• Remanufactured disc brake caliper with steel piston
• Compatible with Geo Impulse, Isuzu Storm, and Stylus
• Oil emulsion gray finish for corrosion resistance
• Includes installation hardware kit (mounting bolts not included)
• Bleeder port size M8x1.0 and inlet port size M10x1.0
• Single piston design with 51.054 mm outer diameter

Product Line: Cardone Unloaded Caliper

The Cardone Unloaded Caliper line provides remanufactured brake calipers that come without brake pads, allowing for flexible installation with existing or aftermarket pads. This product line focuses on delivering reliable hydraulic brake components with included hardware kits to facilitate installation. The 19-1416 caliper fits within this line, offering a quality remanufactured option for specific Geo and Isuzu models.

Detailed Product Description

This Cardone 19-1416 disc brake caliper features a single steel piston with a precise 51.054 mm outer diameter, ensuring consistent braking force. The caliper is finished with an oil emulsion coating in gray, which helps resist corrosion and extends service life. It includes a bleeder port sized M8x1.0 and an inlet port sized M10x1.0, compatible with standard brake lines for the specified vehicles. The package contains the caliper and a hardware kit, though mounting bolts are not included. This remanufactured caliper is designed to meet or exceed OEM specifications for the Geo Impulse, Isuzu Storm, and Stylus models.

Common Applications and Issues Addressed

• Replacement for worn or leaking calipers on Geo Impulse, Isuzu Storm, and Stylus
• Resolves brake pedal issues caused by caliper malfunction or air in the brake system
• Addresses uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper hardware or piston problems
• Restores proper hydraulic pressure and brake fluid flow

Installation Notes and Tips

• Use silicone grease on floating caliper mounting pins to ensure smooth operation
• Always use brake fluid recommended by the original equipment manufacturer (OEM)
• New hardware is included with the caliper, but mounting bolts must be sourced separately
• Bleed the brake system thoroughly to remove air and prevent low brake pedal issues
• Do not interchange phenolic and steel piston calipers unless specified by OEM

Quality Assurance and Warranty

The Cardone 19-1416 caliper is remanufactured to meet strict quality standards, ensuring reliable performance and durability. It includes a hardware kit to support proper installation. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship. Always verify warranty terms with the supplier or manufacturer.
