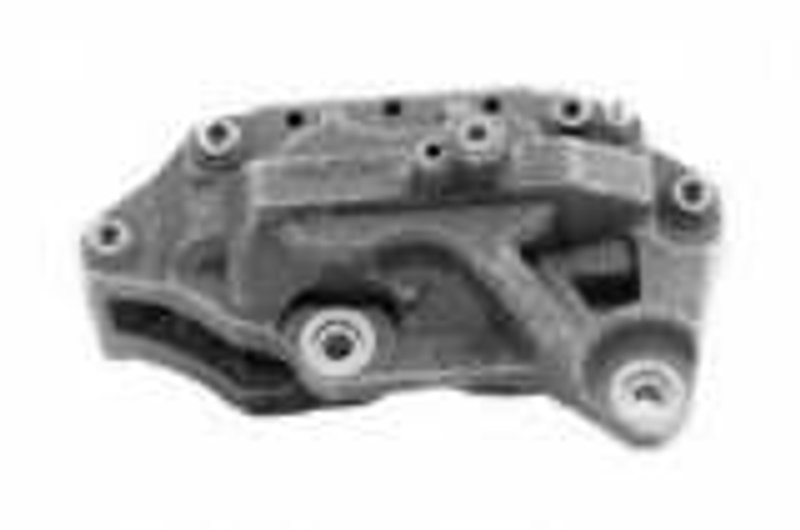

Cardone 19-1909 Disc Brake Caliper - Front Left

Overview of Cardone Unloaded Caliper 19-1909 for Lexus LS400

The Cardone Unloaded Caliper 19-1909 is a remanufactured disc brake caliper designed specifically for the Lexus LS400. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with steel pistons
• Compatible with Lexus LS400 models
• Includes caliper and hardware kit; mounting bolts not included
• Bleeder and inlet port size: M10x1.0
• Oil emulsion finish with gray color for corrosion resistance
• Four steel pistons, each 1.688 inches (42.8752 mm) in diameter

Cardone Unloaded Caliper Product Line Details

The Unloaded Caliper line from Cardone offers remanufactured brake calipers that come without brake pads installed, allowing for flexible installation with existing or aftermarket pads. This product line focuses on delivering reliable hydraulic brake components that meet or exceed OEM standards, providing a cost-effective solution for brake system repairs on vehicles like the Lexus LS400.

Product Features and Specifications

This Cardone 19-1909 caliper features a steel piston construction with four pistons, each measuring 1.688 inches in diameter, ensuring consistent braking force. The caliper is finished with an oil emulsion coating in gray, which helps resist corrosion and extends service life. Both the bleeder port and inlet port are sized M10x1.0, compatible with standard brake lines for the Lexus LS400. The package includes the caliper and a hardware kit, though mounting bolts are not included.

Common Applications and Problem Solving

• Replacement for worn or leaking brake calipers on Lexus LS400
• Addresses symptoms of low brake pedal caused by caliper issues
• Resolves uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper malfunction
• Restores proper hydraulic pressure in brake system

Installation Notes and Tips

When installing the Cardone 19-1909 caliper, use the included hardware kit for secure mounting. Note that mounting bolts are not included and must be sourced separately if needed. It is recommended to use the brake fluid specified by the vehicle manufacturer, typically DOT 3 or DOT 4. Apply silicone grease on floating caliper mounting pins to ensure smooth operation. Bleed the brake system thoroughly to remove any air and prevent a low brake pedal feel.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. Cardone provides a warranty on this part to cover defects in materials and workmanship, ensuring dependable performance for your Lexus LS400 brake system.
