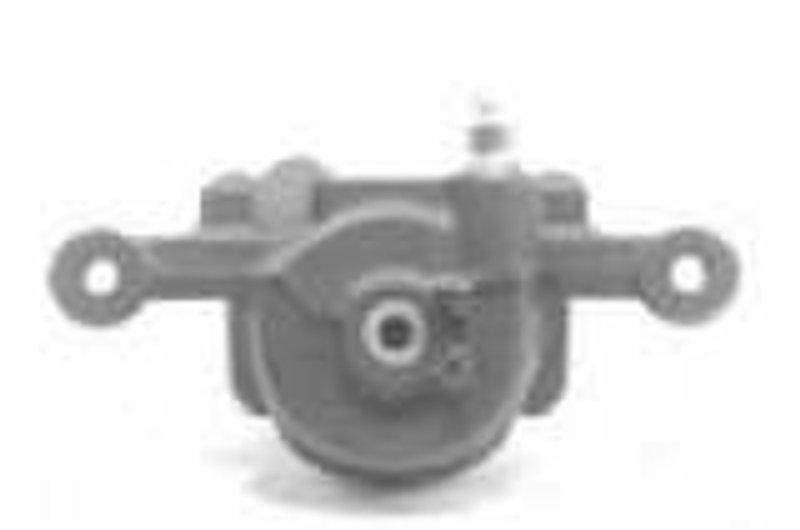

Cardone 19-2005 Disc Brake Caliper - Front Right

Overview of Cardone 19-2005 Unloaded Caliper

The Cardone 19-2005 Unloaded Caliper is a remanufactured disc brake caliper designed for select Chevrolet, Geo, Pontiac, and Suzuki models including the Firefly, Metro, and Swift. Engineered with a steel piston and finished with an oil emulsion coating, this caliper offers reliable braking performance and corrosion resistance.

• Remanufactured disc brake caliper with steel piston
• Compatible with Chevrolet Firefly, Geo Metro, Pontiac Firefly, and Suzuki Swift
• Bleeder and inlet port size: M10x1.0
• Oil emulsion finish in gray color for corrosion protection
• Includes installation hardware kit (mounting bolts not included)
• Single piston design with 48.03 mm outer diameter

Cardone Unloaded Caliper Product Line Details

The Unloaded Caliper line from Cardone provides remanufactured brake calipers that come without brake pads, allowing for flexible installation with existing or aftermarket pads. This product line focuses on delivering reliable hydraulic brake components that meet or exceed original equipment specifications. The 19-2005 caliper is part of this line, offering a quality remanufactured option for vehicles requiring a dependable disc brake caliper replacement.

Product Features and Specifications

This Cardone disc brake caliper features a single steel piston with a precise 48.0314 mm outer diameter, ensuring consistent braking force. The caliper is finished with an oil emulsion coating in gray, which helps resist corrosion and extends service life. Both the bleeder port and inlet port are sized M10x1.0, compatible with standard brake lines and fittings. The package includes the caliper and a hardware kit for installation, though mounting bolts are not included. This remanufactured caliper is designed to meet the braking needs of Chevrolet Firefly, Geo Metro, Pontiac Firefly, and Suzuki Swift models.

Common Applications and Problem Solving

• Replacement for worn or leaking disc brake calipers on compatible vehicles
• Addresses symptoms of low brake pedal often caused by caliper issues
• Helps resolve uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper malfunction
• Restores proper hydraulic pressure in brake systems with faulty calipers

Installation Notes and Tips

When installing the Cardone 19-2005 caliper, use the included hardware kit for proper mounting. Note that mounting bolts are not included and must be sourced separately if needed. It is recommended to use the brake fluid specified by the original equipment manufacturer to maintain system integrity. Applying silicone grease on floating caliper mounting pins can improve caliper movement and reduce noise. Always bleed the brake system thoroughly to remove air and ensure a firm brake pedal feel.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for performance and durability. Cardone provides a warranty on this part to cover defects in materials and workmanship, offering confidence in its reliability for Chevrolet Firefly, Geo Metro, Pontiac Firefly, and Suzuki Swift brake system repairs.
