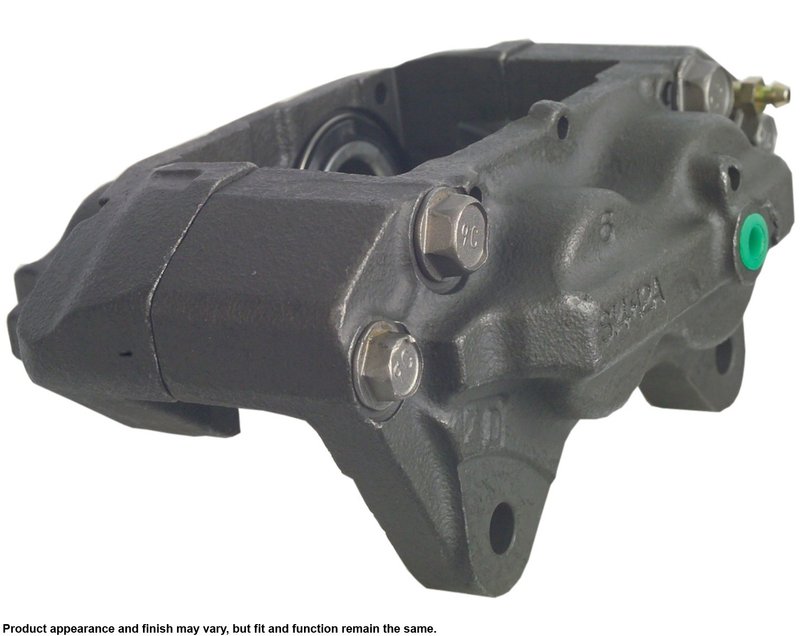

Cardone 19-2635 Disc Brake Caliper - Front Left

Overview of Cardone Unloaded Caliper 19-2635

The Cardone Unloaded Caliper 19-2635 is designed for reliable brake performance on Lexus Land Cruiser and Toyota LX470 models. This remanufactured disc brake caliper features a durable oil emulsion finish and steel pistons to ensure consistent braking power.

• Compatible with Lexus Land Cruiser and Toyota LX470
• Remanufactured disc brake caliper with steel pistons
• Oil emulsion gray finish for corrosion resistance
• Includes caliper and hardware kit; mounting bolts not included
• Bleeder and inlet port size: M10x1.0
• Four 48.006 mm steel pistons for balanced braking

Product Features and Specifications

The Cardone 19-2635 caliper is part of the Unloaded Caliper brand line, which provides remanufactured calipers without brake pads installed, allowing for flexible brake system upgrades. This caliper is finished with an oil emulsion coating in gray to protect against rust and wear. It includes a hardware kit for installation, though mounting bolts are not supplied. The caliper features four steel pistons, each measuring 48.006 mm in diameter, designed to deliver even pressure across the brake pads. Both the bleeder and inlet ports have an M10x1.0 thread size, compatible with OEM brake lines and fittings.

Applications and Problem Solving

• Replacement for worn or leaking calipers on Lexus Land Cruiser and Toyota LX470
• Addresses brake pull issues caused by uneven caliper piston pressure
• Resolves low brake pedal symptoms often linked to caliper malfunction
• Helps eliminate brake squeal related to caliper hardware or piston problems
• Suitable for restoring braking performance after caliper corrosion or damage

Installation Notes and Tips

When installing the Cardone 19-2635 caliper, use the included hardware kit for proper mounting. Note that mounting bolts are not included and must be sourced separately. It is recommended to use the brake fluid specified by the vehicle manufacturer, typically DOT 3 or DOT 4. Applying silicone grease on floating caliper mounting pins can help maintain smooth caliper movement and prevent noise. Bleed the brake system thoroughly to remove air and ensure a firm brake pedal feel.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. Cardone provides a warranty covering defects in materials and workmanship, supporting reliable brake system performance for Lexus Land Cruiser and Toyota LX470 owners.
