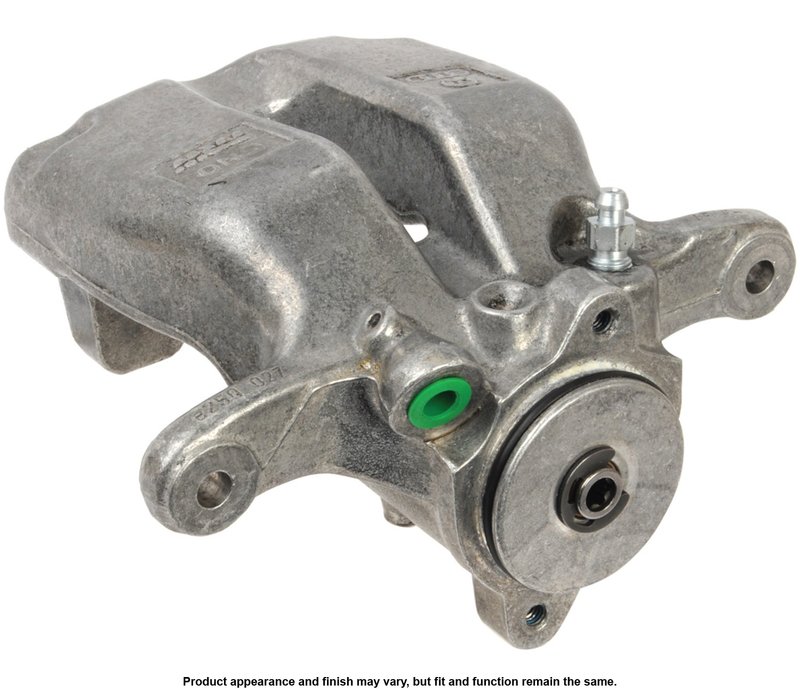

Cardone 19-3121NM Disc Brake Caliper - Rear Left

Remanufactured Rear Left Caliper for Audi A8 Quattro

Cardone 19-3121NM is a remanufactured disc brake caliper for the rear left position on select Audi A8 Quattro models. It is built with new premium components, pressure-tested for consistent brake performance, and finished in gray with an oil emulsion coating for corrosion resistance.

Fits 2004-2007 Audi A8 Quattro, rear left. This unloaded caliper is supplied without a parking brake motor and is intended for applications that use a steel piston and no mounting bracket.

Key Features

• Remanufactured Original Equipment-style brake caliper for direct vehicle fit
• Fits 2004-2007 Audi A8 Quattro, rear left
• Cardone part number 19-3121NM
• Steel piston construction with a 42.7482 mm piston diameter
• New bleeder screw, seals, and hardware kit included
• Brake port threads protected with a plastic cap plug for cleaner installation
• Oil emulsion finish with rust inhibitor treatment
• Inlet and bleeder port size: M10x1.0

Product Details

Cardone Unloaded Caliper 19-3121NM is remanufactured to OE specifications and pressure-tested before release. The caliper body is restored with new high-temperature EPDM rubber seals, durable piston components, and new stainless steel hardware clips and mounting pins where applicable. This approach supports reliable braking response while reducing the raw material and energy demand associated with manufacturing a new part.

This part cross-references Audi OE numbers 4E0615403 and 4E0615404 for the same application. Use Cardone 19-3121NM when replacing a rear left disc brake caliper on an Audi A8 Quattro from 2004 through 2007.

Common Brake Issues It Can Address

• Brake fluid leakage at the caliper body or bleeder area
• Uneven rear braking or pulling during stops
• Sticking or seized caliper piston movement
• Corrosion-related caliper wear on the rear left corner
• Soft or inconsistent brake pedal feel caused by caliper-related faults

Installation Notes

Fits 2004-2007 Audi A8 Quattro, rear left. This unloaded caliper is supplied without pads and without a parking brake motor. Verify the vehicle’s brake fluid specification before service, use fresh sealed brake fluid, and bleed the system thoroughly after installation. On floating caliper designs, use silicone grease on the mounting pins as noted in the product guidance.

Quality Assurance

Each Cardone brake caliper is remanufactured under controlled quality standards and 100% pressure-tested to confirm sealing and performance before shipment. The unit is finished with a rust-inhibiting coating and assembled with new service components to support dependable operation on Audi A8 Quattro brake repairs.
