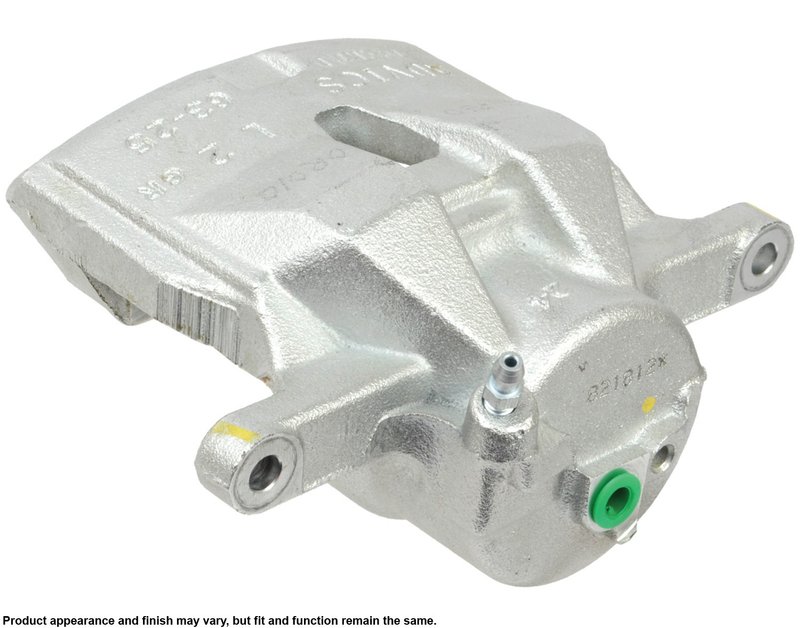

Cardone 19-3196 Disc Brake Caliper - Front Left

Overview of Cardone Unloaded Caliper 19-3196

The Cardone Unloaded Caliper 19-3196 is a remanufactured disc brake caliper designed for reliable braking performance on select Lexus, Scion, and Toyota models. Engineered with a steel piston and finished with an oil emulsion coating, this caliper offers durability and corrosion resistance for vehicles like the Lexus HS250h, Scion xB, and Toyota Prius V and RAV4.

• Remanufactured disc brake caliper with steel piston
• Oil emulsion finish in gray color for corrosion protection
• Includes caliper and hardware kit; mounting bolts not included
• Compatible with Lexus HS250h, Scion xB, Toyota Prius V, and RAV4
• Bleeder port size M7x1.0 and inlet port size M10x1.0
• Part number 19-3196 for precise identification

About the Cardone Unloaded Caliper Product Line

The Cardone Unloaded Caliper line provides remanufactured brake calipers that come without brake pads installed, allowing for flexible installation with existing or aftermarket pads. This product line focuses on delivering reliable hydraulic brake components that meet or exceed original equipment specifications. The 19-3196 caliper is part of this line, offering a steel piston design and an oil emulsion finish to ensure consistent braking performance and resistance to environmental wear.

Detailed Product Description

This Cardone disc brake caliper features a single steel piston with an outer diameter of 63.373 mm, designed to provide consistent clamping force for effective braking. The gray oil emulsion finish helps protect the caliper from rust and corrosion, extending its service life. The caliper includes a hardware kit for installation, though mounting bolts are not included. It is equipped with a bleeder port sized M7x1.0 and an inlet port sized M10x1.0, compatible with the brake hydraulic system of the specified vehicle models.

Common Applications and Issues Addressed

• Replacement for worn or leaking calipers on Lexus HS250h, Scion xB, Toyota Prius V, and RAV4
• Resolves brake pedal issues caused by caliper malfunction or air in the brake lines
• Addresses uneven braking or vehicle pull to one side during braking
• Eliminates brake squeal related to caliper hardware or piston problems
• Restores proper brake fluid flow and pressure in the hydraulic system

Installation Notes and Tips

• Use silicone grease on floating caliper mounting pins to ensure smooth operation
• Always use brake fluid recommended by the original equipment manufacturer (OEM)
• New hardware is included with the caliper, but mounting bolts must be sourced separately
• Bleed the brake system thoroughly after installation to remove air and restore pedal firmness
• Do not interchange phenolic and steel piston calipers unless specified by OEM guidelines

Quality Assurance and Warranty

This Cardone remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. The steel piston and oil emulsion finish contribute to long-lasting performance under normal operating conditions. Installation hardware is included to facilitate proper mounting. Warranty details are provided by Cardone and typically cover defects in materials and workmanship for a specified period. Refer to Cardone's warranty policy for exact terms.
