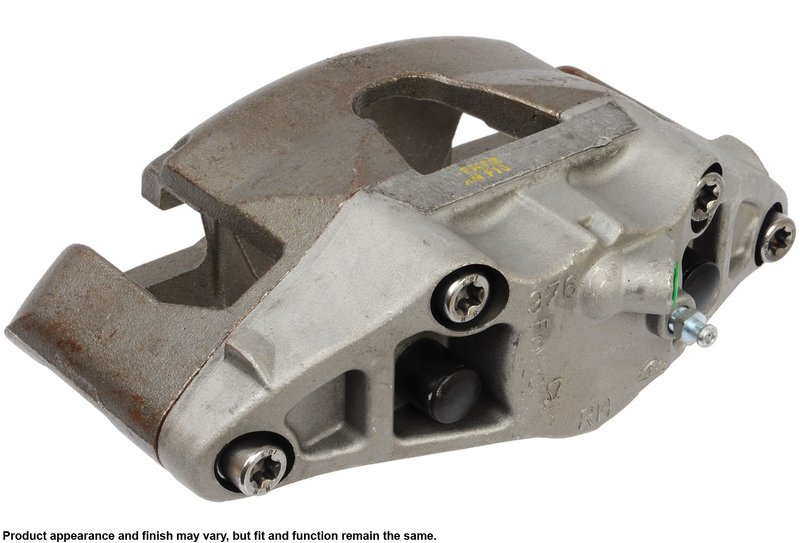

Cardone 19-3273 Disc Brake Caliper - Front Right

Overview of Cardone Unloaded Caliper 19-3273

The Cardone Unloaded Caliper 19-3273 is a remanufactured disc brake caliper designed for select Mazda and Volvo models. Engineered with a steel piston and an oil emulsion finish, this caliper provides reliable braking performance for vehicles such as the Mazda 3 and Volvo S40.

• Remanufactured disc brake caliper with steel piston
• Compatible with Mazda 3 and Volvo C70, S40, V50 models
• Bleeder and inlet port size: M10x1.0
• Oil emulsion gray finish for corrosion resistance
• Includes caliper and hardware kit; mounting bolts not included

Product Features and Specifications

This Cardone Unloaded Caliper features a single steel piston with an outer diameter of approximately 56.95 mm, ensuring consistent brake pad engagement. The caliper is finished with an oil emulsion coating in gray, which helps protect against rust and wear. Both the bleeder port and inlet port have an M10x1.0 thread size, compatible with standard brake lines and bleeding tools. The package includes the caliper and a hardware kit, though mounting bolts are not provided.

About the Cardone Unloaded Caliper Product Line

The Unloaded Caliper line from Cardone offers remanufactured brake calipers that come without brake pads installed, allowing for flexible installation with aftermarket or OEM pads. This line focuses on delivering reliable hydraulic brake components that meet or exceed original equipment specifications. The 19-3273 model fits within this line, providing a cost-effective solution for brake system repairs on Mazda and Volvo vehicles.

Compatible Vehicles and Common Applications

This disc brake caliper is compatible with the following vehicles:

• Mazda 3 (various model years)
• Volvo C70
• Volvo S40
• Volvo V50

It is designed to address several brake system issues, including:

• Uneven brake pad wear due to caliper malfunction
• Brake pedal softness caused by air in the hydraulic system
• Vehicle pulling to one side during braking
• Brake squeal related to caliper or mounting pin issues
• Caliper leaks or piston corrosion

Installation Notes and Tips

When installing the Cardone 19-3273 caliper, use the included hardware kit for proper mounting. Note that mounting bolts are not included and must be sourced separately if needed. It is recommended to use the brake fluid type specified by the vehicle manufacturer, typically DOT 3 or DOT 4. Applying silicone grease on floating caliper mounting pins can help reduce noise and ensure smooth caliper movement. Always bleed the brake system thoroughly to remove air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. Cardone provides a limited warranty on the 19-3273 caliper, covering defects in materials and workmanship. For specific warranty details, refer to Cardone’s official documentation or contact the manufacturer directly.
