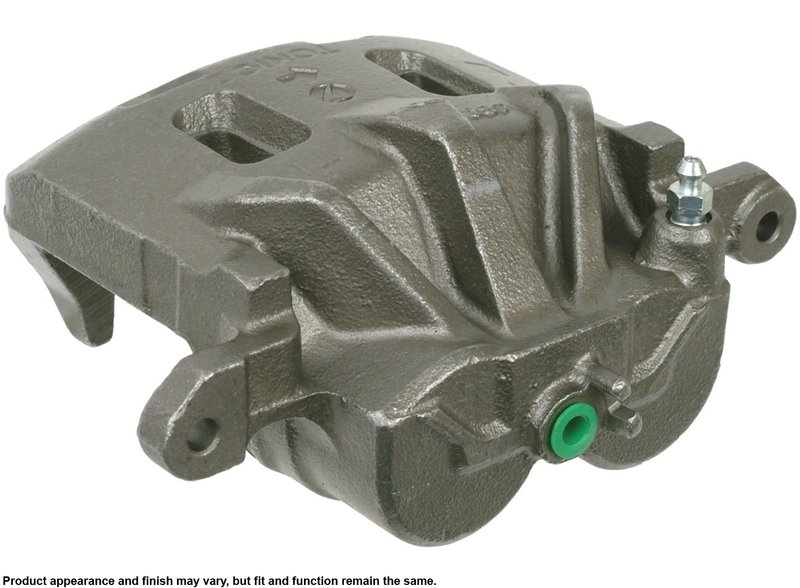

Cardone 19-3349 Disc Brake Caliper - Front Left

Overview of Cardone Unloaded Caliper 19-3349

The Cardone Unloaded Caliper 19-3349 is a remanufactured disc brake caliper designed specifically for Subaru models including the B9 Tribeca, Forester, Legacy, Outback, Tribeca, and WRX. Engineered to meet OEM specifications, this caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with steel pistons
• Compatible with multiple Subaru models: B9 Tribeca, Forester, Legacy, Outback, Tribeca, WRX
• Includes caliper and hardware kit; mounting bolts not included
• Oil emulsion finish with gray caliper color for corrosion resistance
• Bleeder and inlet port size: M10x1.0
• Two 42.77 mm steel pistons for consistent braking force

Cardone Unloaded Caliper Product Line Details

The Cardone Unloaded Caliper line provides remanufactured brake calipers that come without brake pads, allowing for flexible installation with existing or aftermarket pads. This product line focuses on delivering reliable hydraulic brake components that meet or exceed OEM standards. The 19-3349 caliper is part of this line, offering a quality remanufactured option for Subaru vehicles requiring disc brake caliper replacement.

Technical Description and Features

This Cardone 19-3349 caliper features a durable oil emulsion finish in gray, which helps protect against corrosion and wear. It is equipped with two steel pistons measuring 42.7736 mm in diameter, providing consistent and even pressure on the brake pads. The caliper includes a hardware kit for installation, though mounting bolts are not included. Both the bleeder port and inlet port have an M10x1.0 thread size, compatible with standard brake lines and fittings. The caliper uses silicone grease on floating caliper mounting pins to ensure smooth operation and reduce noise.

Common Applications and Problem Solving

• Replacement for worn or leaking disc brake calipers on Subaru B9 Tribeca, Forester, Legacy, Outback, Tribeca, and WRX
• Addresses symptoms such as low brake pedal caused by air in the brake system
• Helps resolve uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper hardware or piston issues
• Restores proper hydraulic pressure and brake fluid flow

Installation Notes and Tips

When installing the Cardone 19-3349 caliper, use the included hardware kit for secure mounting. Note that mounting bolts are not included and must be reused or sourced separately. Always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Apply silicone grease to the floating caliper mounting pins to ensure smooth caliper movement and prevent noise. Bleed the brake system thoroughly to remove any air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM performance standards. It is built with steel pistons and finished with an oil emulsion coating for durability. Cardone provides a limited warranty on this part, covering defects in materials and workmanship to ensure reliable operation on your Subaru vehicle.
