Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

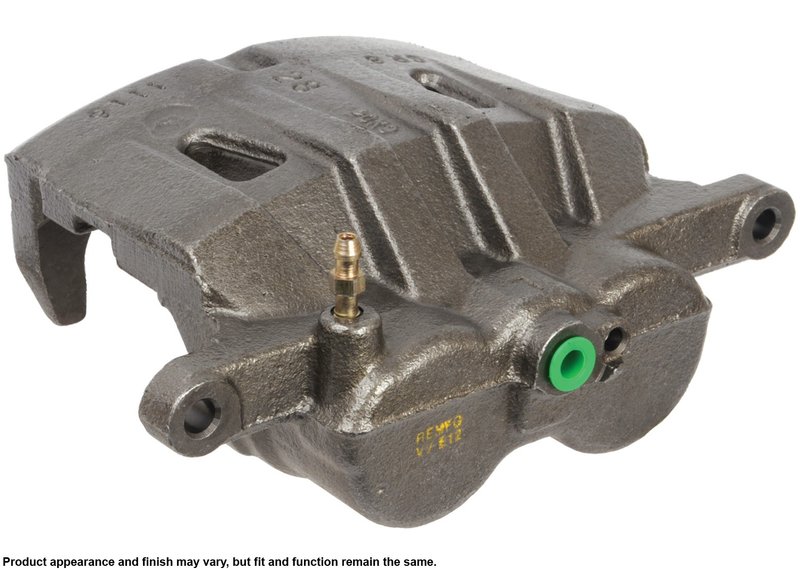

Cardone 19-6274 Disc Brake Caliper - Front Left
| Brand | Cardone 19-6274 |
|---|---|
| Position | Front Left |
| Bleeder Port Size | M7x1.0 |
| Brake Caliper Finish | Oil Emulsion |
| Caliper Color | Gray |
| E-Waste | No |
| Inlet Port Size | M10x1.0 |
| Installation Hardware Included | Yes |
| Mounting Bolts Included | No |
| Package Contents | Caliper; Hardware Kit |
| Pads Included | No |
| Piston Material | Steel |
| Piston Size (OD) (mm) | 44.3992 |
| Product Condition | Remanufactured |
| Product line | Unloaded Caliper |
| Fits | Lexus and Toyota · 49 vehicles |
Remanufactured OE part. Delivers a precise fit with consistent brake performance.
New hardware included. Arrives ready for a simple, complete installation.
Rust-inhibiting finish. Helps protect the caliper and preserve its original look.
Cross-references Lexus 477500E030, Lexus 477500E060 and Toyota 477500E030 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Cardone Unloaded Caliper for Lexus and Toyota
Cardone Part Number 19-6274 is a remanufactured disc brake caliper for front left applications on select Lexus RX350, Lexus RX450h, Toyota Sienna, and Toyota Highlander models. Built as an unloaded caliper, it is supplied for brake service where the caliper body and piston assembly are needed without pads.
Key Features
- Remanufactured Original Equipment-style fit for direct replacement service
- Front left disc brake caliper with steel piston construction
- Two-piston design with 44.3992 mm piston size
- Oil emulsion finish with gray caliper color
- New bleeder screw, seals, and hardware components used in the remanufacturing process
- Brake port threads protected with a plastic cap plug for cleaner installation
- Caliper bracket included where applicable
- Part number 19-6274 for service matching and catalog lookup
Product Details
This Cardone Unloaded Caliper is remanufactured to OE-level specifications and pressure-tested for consistent brake performance. The unit uses new premium components during remanufacturing, including high-temperature EPDM rubber seals, durable pistons, and corrosion-resistant hardware elements where applicable. It is a practical replacement for front left brake service on Lexus RX350, Lexus RX450h, Toyota Sienna, and Toyota Highlander applications that call for this exact caliper configuration. This part cross-references Toyota 477500E030 and 477500E031 for the same application.
What This Caliper Helps Address
- Leaking or sticking front left brake caliper
- Uneven braking caused by caliper piston wear or seal failure
- Brake drag from a seized or corroded caliper assembly
- Poor pedal response related to caliper hydraulic issues
- Brake noise or pull caused by caliper condition on Lexus RX350 and Toyota Highlander service
Installation Notes and Tips
Verify bleeder port size M7x1.0 and inlet port size M10x1.0 before installation. Use the brake fluid specified by the vehicle manufacturer and replace fluid from a sealed container only. Floating caliper mounting pins should be lubricated with silicone grease. If the vehicle uses a bracket for this application, confirm bracket inclusion by part number and application before beginning service. Fits 2010-2020 Lexus RX350, front left; Fits 2016-2021 Lexus RX450h, front left; Fits 2011-2020 Toyota Sienna, front left; Fits 2012-2019 Toyota Highlander, front left; Fits 2010-2011 Toyota Highlander, front left.
Quality Assurance
Cardone remanufactures this caliper using new premium components and pressure-tests each unit to support consistent brake performance. The process is designed to reduce raw material and energy use compared with manufacturing a new part, while maintaining OE-style fit and function for the listed Lexus and Toyota applications.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Lexus | RX350 | — | Front Left | Remanufactured Brake Caliper |
| 2022 | Lexus | RX450h | — | Front Left | Remanufactured Brake Caliper |
| 2021 | Lexus | RX350 | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2021 | Lexus | RX450h | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2020 | Lexus | RX350 | — | Front Left | North American Built; with Metal Piston; Supplied without Mounting Bracket; Installation Hardware Included; Unloaded Caliper |
| 2020 | Lexus | RX450h | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2020 | Toyota | Sienna | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2019 | Lexus | RX350 | — | Front Left | North American Built; with Metal Piston; Supplied without Mounting Bracket; Installation Hardware Included; Unloaded Caliper |
| 2019 | Lexus | RX450h | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2019 | Toyota | Highlander | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2019 | Toyota | Sienna | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2018 | Lexus | RX350 | — | Front Left | North American Built; with Metal Piston; Supplied without Mounting Bracket; Installation Hardware Included; Unloaded Caliper |
| 2018 | Lexus | RX450h | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2018 | Toyota | Highlander | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2018 | Toyota | Sienna | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2017 | Lexus | RX350 | — | Front Left | North American Built; with Metal Piston; Supplied without Mounting Bracket; Installation Hardware Included; Unloaded Caliper |
| 2017 | Lexus | RX450h | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2017 | Toyota | Highlander | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2017 | Toyota | Sienna | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2016 | Lexus | RX350 | — | Front Left | North American Built; with Metal Piston; Supplied without Mounting Bracket; Installation Hardware Included; Unloaded Caliper |
| 2016 | Lexus | RX450h | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2016 | Toyota | Highlander | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2016 | Toyota | Sienna | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2015 | Lexus | RX350 | — | Front Left | North American Built; with Metal Piston; Supplied without Mounting Bracket; Installation Hardware Included; Unloaded Caliper |
| 2015 | Toyota | Highlander | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2015 | Toyota | Sienna | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2014 | Lexus | RX350 | — | Front Left | North American Built; with Metal Piston; Supplied without Mounting Bracket; Installation Hardware Included; Unloaded Caliper |
| 2014 | Toyota | Highlander | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2014 | Toyota | Sienna | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2013 | Lexus | RX350 | — | Front Left | North American Built; with Metal Piston; Supplied without Mounting Bracket; Installation Hardware Included; Unloaded Caliper |
| 2013 | Toyota | Highlander | SE | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2013 | Toyota | Highlander | Base | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2013 | Toyota | Highlander | Base Premium | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2013 | Toyota | Highlander | Limited | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2013 | Toyota | Highlander | Sport Premium | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2013 | Toyota | Highlander | Plus | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2013 | Toyota | Sienna | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2012 | Lexus | RX350 | — | Front Left | North American Built; with Metal Piston; Supplied without Mounting Bracket; Installation Hardware Included; Unloaded Caliper |
| 2012 | Toyota | Highlander | SE | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2012 | Toyota | Highlander | Base | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2012 | Toyota | Highlander | Base Premium | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2012 | Toyota | Highlander | Limited | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2012 | Toyota | Highlander | Sport Premium | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2012 | Toyota | Sienna | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2011 | Lexus | RX350 | — | Front Left | North American Built; with Metal Piston; Supplied without Mounting Bracket; Installation Hardware Included; Unloaded Caliper |
| 2011 | Toyota | Highlander | — | Front Left | USA Built with Metal Piston, Supplied without Mounting Bracket, Installation Hardware Included; Unloaded Caliper |
| 2011 | Toyota | Sienna | — | Front Left | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2010 | Lexus | RX350 | — | Front Left | North American Built; with Metal Piston; Supplied without Mounting Bracket; Installation Hardware Included; Unloaded Caliper |
| 2010 | Toyota | Highlander | — | Front Left | USA Built with Metal Piston, Supplied without Mounting Bracket, Installation Hardware Included; Unloaded Caliper |
