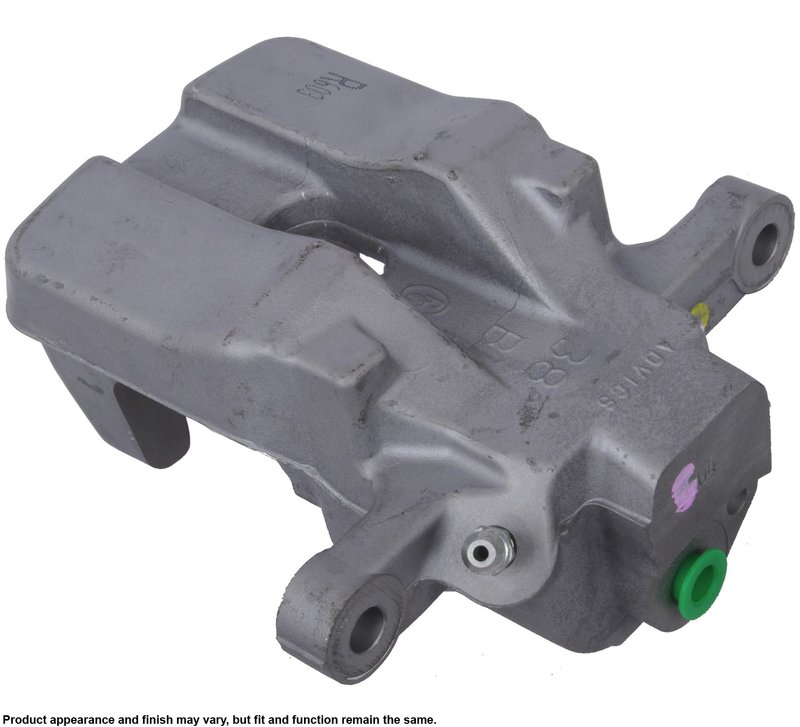

Cardone 19-6993 Disc Brake Caliper - Rear Right
| Brand | Cardone 19-6993 |
|---|---|
| Position | Rear Right |
| Bleeder Port Size | M7x1.0 |
| Brake Caliper Finish | Oil Emulsion |
| Caliper Color | Gray |
| E-Waste | No |
| Inlet Port Size | M10x1.0 |
| Installation Hardware Included | Yes |
| Mounting Bolts Included | No |
| Package Contents | Caliper; Hardware Kit |
| Pads Included | No |
| Piston Material | Steel |
| Piston Size (OD) (mm) | 37.9984 |
| Product Condition | Remanufactured |
| Product line | Unloaded Caliper |
| Fits | Lexus and Toyota · 27 vehicles |
OE direct replacement. Remanufactured Original Equipment fit for straightforward installation.
Pressure-tested caliper. Delivers consistent braking performance with dependable sealing.
New hardware included. Arrives with a complete hardware kit for a simpler install.
Cross-references Lexus 4783033240, Lexus 4783033250 and Toyota 4783006053 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Cardone Rear Right Brake Caliper for Avalon, Camry, ES350
The Cardone Unloaded Caliper 19-6993 is a remanufactured rear right disc brake caliper built for select Lexus and Toyota applications. It is pressure-tested and supplied with a steel piston, new seals, and a hardware kit for a direct replacement on the rear brake system.
Key Features
- Remanufactured Original Equipment-style brake caliper for a precise vehicle fit
- Rear right position for select Lexus ES300h, Lexus ES350, Toyota Avalon, and Toyota Camry applications
- Steel piston construction with a 37.9984 mm piston size
- Oil emulsion finish with gray caliper color and rust-inhibiting treatment
- New bleeder screw, new EPDM rubber seals, and new stainless steel hardware clips where applicable
- Plastic cap plugs protect brake port threads during handling and installation
- Inlet port size: M10x1.0; bleeder port size: M7x1.0
- Part number 19-6993 is an unloaded caliper, so pads are not included
Product Details
Cardone remanufactures this brake caliper to OE specifications using brand-new premium components in critical wear areas. The caliper is 100% pressure-tested for consistent hydraulic performance, and the original equipment finish is retained with a special rust inhibitor to help preserve the housing. This part number 19-6993 is a practical replacement for rear brake service on the Lexus ES300h, Lexus ES350, Toyota Avalon, and Toyota Camry when the original rear right caliper is worn, sticking, or leaking.
This part cross-references Lexus 4783033240 and Toyota 4783006053 for the same application.
What It Helps Fix
- Brake fluid leakage at the rear right caliper
- Sticking or seized caliper piston movement
- Uneven rear brake wear
- Soft or inconsistent brake pedal feel caused by caliper issues
- Brake drag or pulling during braking on the affected corner
Installation Notes and Tips
Compatible With 2013-2018 Lexus ES300h, rear right; 2013-2018 Lexus ES350, rear right; 2012-2018 Toyota Avalon, rear right; 2012-2017 Toyota Camry, rear right; 2012 Lexus ES350, rear right; and 2011 Toyota Camry, rear right. The 2012 Lexus ES350 application is from 09/2011 with metal piston and no mounting bracket; the 2011 Toyota Camry application is USA-built from 12/2010 with metal piston and no mounting bracket. Use the correct brake fluid specified on the master cylinder reservoir lid, and bleed the system thoroughly after installation. Silicone grease is used on floating caliper mounting pins.
Quality Assurance
Cardone remanufactured calipers are pressure-tested and assembled with new internal components where needed to support reliable brake performance. The remanufacturing process also reduces energy and raw material use compared with producing a new part.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2018 | Lexus | ES300h | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2018 | Lexus | ES350 | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2018 | Toyota | Avalon | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2017 | Lexus | ES300h | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2017 | Lexus | ES350 | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2017 | Toyota | Avalon | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2017 | Toyota | Camry | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2016 | Lexus | ES300h | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2016 | Lexus | ES350 | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2016 | Toyota | Avalon | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2016 | Toyota | Camry | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2015 | Lexus | ES300h | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2015 | Lexus | ES350 | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2015 | Toyota | Avalon | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2015 | Toyota | Camry | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2014 | Lexus | ES300h | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2014 | Lexus | ES350 | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2014 | Toyota | Avalon | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2014 | Toyota | Camry | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2013 | Lexus | ES300h | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2013 | Lexus | ES350 | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2013 | Toyota | Avalon | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2013 | Toyota | Camry | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2012 | Lexus | ES350 | Rear Right | From 09/2011; with Metal Piston; Supplied without Mounting Bracket; Installation Hardware Included; Unloaded Caliper |
| 2012 | Toyota | Avalon | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2012 | Toyota | Camry | Rear Right | Metal piston disc brake caliper with bracket and hardware included.; Unloaded Caliper |
| 2011 | Toyota | Camry | Rear Right | USA Built; From 12/2010; with Metal Piston; Supplied without Mounting Bracket; Installation Hardware Included; Unloaded Caliper |
