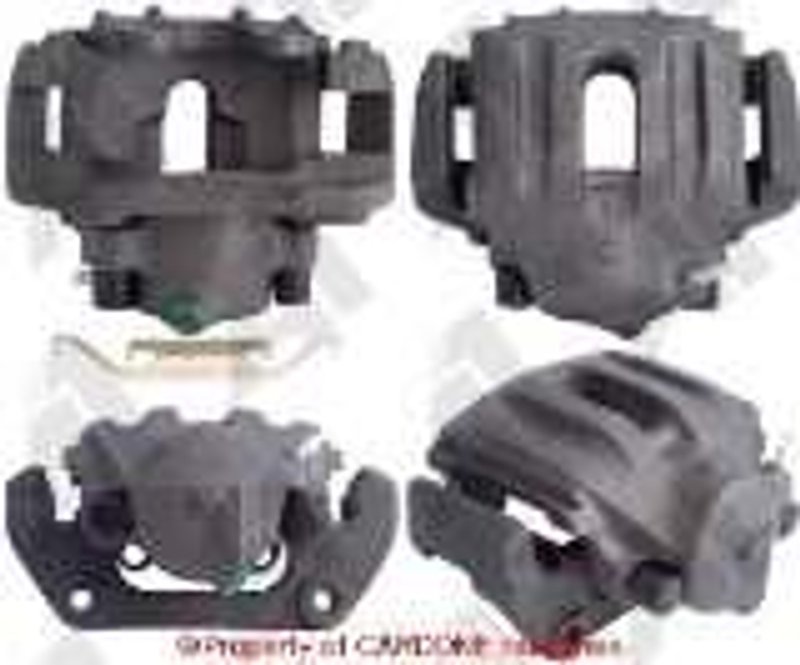

Cardone 19-B1176 Disc Brake Caliper - Front Right

Overview of Cardone Unloaded Caliper w/Bracket 19-B1176

The Cardone Unloaded Caliper w/Bracket 19-B1176 is a remanufactured disc brake caliper designed specifically for select BMW models. Engineered to meet OEM specifications, this caliper ensures reliable braking performance for BMW 540i, 735i, 735iL, 740i, 740iL, and 750iL vehicles.

• Remanufactured disc brake caliper with steel piston
• Includes caliper, bracket, and hardware kit for installation
• Brake caliper finished with oil emulsion in gray color
• Bleeder port size: M7x1.0; inlet port size: M10x1.0
• Compatible with BMW 540i, 735i, 735iL, 740i, 740iL, and 750iL models

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit. This configuration simplifies installation by providing all essential components except mounting bolts, which are not included. The unloaded design means the caliper does not include brake pads, allowing for flexibility in pad selection based on vehicle requirements.

Technical Description and Features

This disc brake caliper features a single steel piston with an outer diameter of approximately 59.92 mm, providing consistent and durable braking force. The caliper is finished with an oil emulsion coating in gray, which helps resist corrosion and wear. The bleeder port size is M7x1.0, and the inlet port size is M10x1.0, matching OEM specifications for proper brake fluid flow and maintenance. Installation hardware is included to facilitate mounting, though mounting bolts must be sourced separately.

Compatible Vehicles and Applications

• BMW 540i
• BMW 735i and 735iL
• BMW 740i and 740iL
• BMW 750iL

This caliper is designed to replace worn or damaged brake calipers on these specific BMW models, restoring braking efficiency and safety.

Common Issues Addressed by This Caliper

• Uneven or reduced braking performance
• Brake pedal feels low or spongy due to caliper malfunction
• Vehicle pulling to one side during braking
• Brake squeal caused by caliper or mounting pin issues
• Corrosion or damage to original caliper components

Installation Notes and Tips

When installing the Cardone 19-B1176 caliper, use the included hardware kit for proper mounting. Note that mounting bolts are not included and should be reused or replaced as needed. It is recommended to apply silicone grease on floating caliper mounting pins to ensure smooth operation. Always use brake fluid recommended by the vehicle manufacturer, typically DOT 3 or DOT 4, and bleed the brake system thoroughly to remove air and prevent low brake pedal symptoms.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. Cardone provides a limited warranty covering defects in materials and workmanship, ensuring dependable performance for your BMW brake system.
