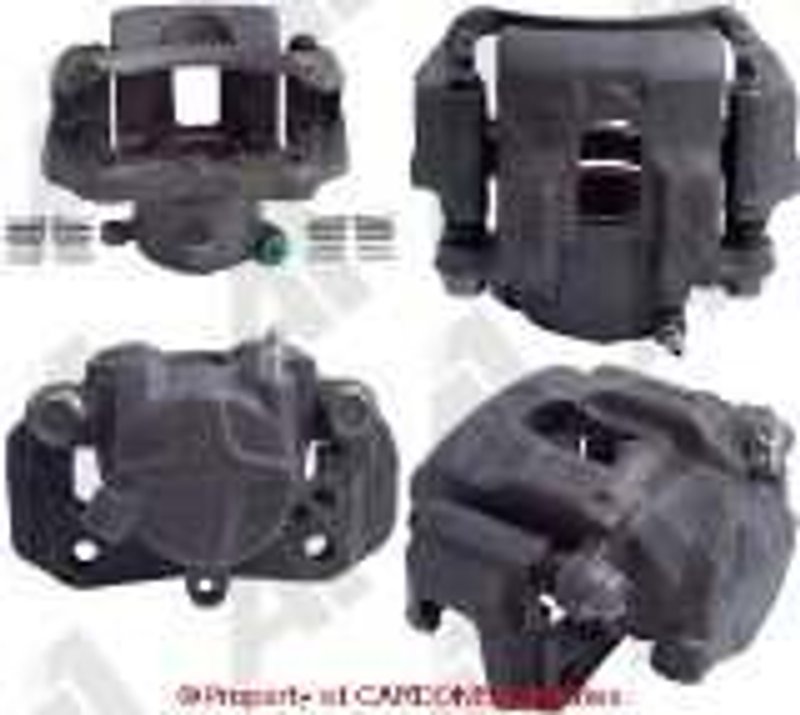

Cardone 19-B1247 Disc Brake Caliper - Front Left

Overview of Cardone Unloaded Caliper w/Bracket 19-B1247

The Cardone Unloaded Caliper w/Bracket 19-B1247 is a remanufactured disc brake caliper designed specifically for Toyota Pickup models. Engineered with a steel piston and finished with an oil emulsion coating, this caliper ensures reliable braking performance and corrosion resistance.

• Remanufactured disc brake caliper with bracket included
• Steel piston with 60.5 mm outer diameter for consistent braking force
• Oil emulsion finish in gray for enhanced durability
• Includes installation hardware kit (mounting bolts not included)
• Bleeder port size M7x1.0 and inlet port size M10x1.0
• Compatible with Toyota Pickup models

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit for installation. This line is designed to provide a direct replacement solution for vehicles requiring a disc brake caliper assembly without brake pads included. The 19-B1247 part number fits within this line, providing a reliable option for Toyota Pickup owners seeking a quality remanufactured caliper.

Technical Description and Features

This Cardone disc brake caliper features a single steel piston with a precise 60.5028 mm outer diameter, ensuring proper clamping force on the brake rotor. The caliper is finished with an oil emulsion coating in gray, which helps resist corrosion and wear over time. The bleeder port size is M7x1.0, and the inlet port size is M10x1.0, matching OEM specifications for proper brake fluid flow and maintenance. The caliper uses silicone grease on floating caliper mounting pins to maintain smooth operation and reduce noise.

Common Applications and Problem Solving

• Replaces worn or leaking calipers on Toyota Pickup models
• Addresses symptoms of low brake pedal often caused by air in the brake system
• Helps resolve uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal caused by caliper or mounting pin issues
• Restores proper brake hydraulics function for improved safety

Installation Notes and Tips

This caliper comes with a hardware kit for installation; however, mounting bolts are not included and must be sourced separately. It is recommended to use the brake fluid type specified by the vehicle manufacturer, typically DOT 3 or DOT 4. Applying silicone grease to the floating caliper mounting pins will help prevent noise and ensure smooth caliper movement. Always bleed the brake system thoroughly after installation to remove air and restore proper pedal feel.

Quality Assurance and Warranty

The Cardone 19-B1247 remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. While specific warranty details are not provided here, Cardone products typically include a limited warranty covering defects in materials and workmanship. Using this caliper ensures a professional-grade replacement part compatible with Toyota Pickup brake hydraulics.
