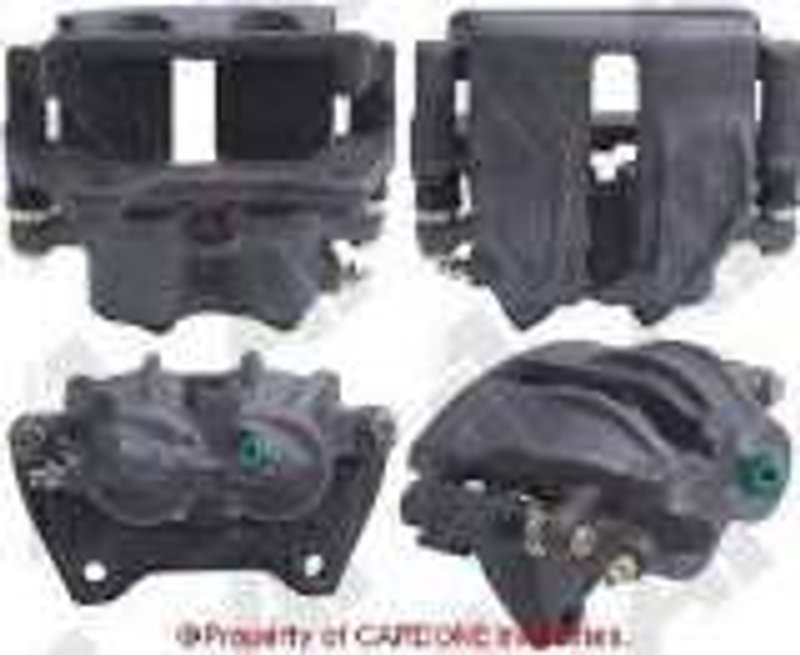

Cardone 19-B1250 Disc Brake Caliper - Front Right

Overview of Cardone Unloaded Caliper w/Bracket 19-B1250

The Cardone Unloaded Caliper w/Bracket 19-B1250 is a remanufactured disc brake caliper designed specifically for Volvo 740, 760, and 780 models. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with bracket and hardware kit included
• Compatible with Volvo 740, 760, and 780 models
• Steel piston material with two 40.386 mm pistons
• Bleeder and inlet port size: M10x1.0
• Oil emulsion finish in gray color for corrosion resistance
• Installation hardware included; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit for installation. This line is designed to provide a cost-effective replacement option that maintains the integrity and fitment of the original equipment. The unloaded design means the caliper does not include brake pads, allowing for flexibility in pad selection based on vehicle requirements.

Technical Description and Features

This Cardone 19-B1250 caliper features a steel piston construction with two pistons measuring 40.386 mm in diameter, providing consistent hydraulic pressure for effective braking. The caliper’s bleeder and inlet ports are sized M10x1.0, matching OEM specifications for proper brake fluid flow. The oil emulsion finish in gray offers protection against corrosion and wear. The package includes the caliper, bracket, and a hardware kit to facilitate installation, though mounting bolts are not included. This remanufactured caliper is designed for Volvo 740, 760, and 780 models, ensuring precise fitment and reliable operation.

Common Applications and Problem Resolution

• Replacement for worn or leaking disc brake calipers on Volvo 740, 760, and 780
• Addresses symptoms such as low brake pedal caused by air in the brake system
• Resolves uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper malfunction
• Restores proper brake fluid flow and pressure for safe stopping

Installation Notes and Tips

When installing the Cardone 19-B1250 caliper, use the included hardware kit for secure mounting. Note that mounting bolts are not included and should be reused or replaced as needed. Apply silicone grease on floating caliper mounting pins to ensure smooth operation. Always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Bleed the brake system thoroughly to remove any air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM standards for performance and durability. The product condition is remanufactured to provide a reliable replacement option. Installation hardware is included to support proper fitment. Warranty details are provided by Cardone and typically cover defects in materials and workmanship, ensuring confidence in the product’s quality.
