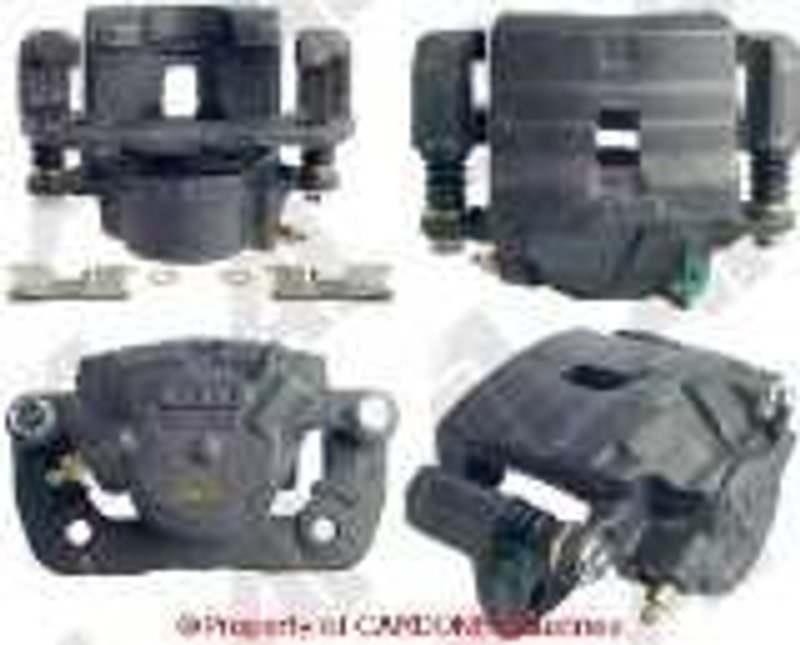

Cardone 19-B1486 Disc Brake Caliper - Front Right

Overview of Cardone Unloaded Caliper w/Bracket 19-B1486

The Cardone Unloaded Caliper w/Bracket 19-B1486 is a remanufactured disc brake caliper designed for reliable braking performance. Specifically compatible with Chevrolet Sidekick and Geo Suzuki Tracker models, this caliper features a steel piston and comes with a complete hardware kit for installation.

• Remanufactured disc brake caliper with steel piston
• Includes caliper, bracket, and installation hardware kit
• Bleeder and inlet port size: M10x1.0
• Oil emulsion brake caliper finish in gray color
• Compatible with Chevrolet Sidekick and Geo Suzuki Tracker

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with brackets and necessary hardware kits, excluding mounting bolts and brake pads. This line is designed to provide a direct replacement solution for disc brake calipers, ensuring proper fit and function for specific vehicle applications such as the Chevrolet Sidekick and Geo Suzuki Tracker. The unloaded design allows for flexibility in brake pad selection and installation.

Technical Description and Features

This Cardone 19-B1486 caliper features a single steel piston with an outer diameter of approximately 53.87 mm, providing consistent braking force. The caliper is finished with an oil emulsion coating in gray, which helps resist corrosion and wear. Both the bleeder port and inlet port are sized M10x1.0, matching original equipment specifications. The package includes the caliper, bracket, and a hardware kit for installation, though mounting bolts and brake pads are not included. The caliper uses silicone grease on floating caliper mounting pins to ensure smooth operation and reduce noise.

Common Applications and Problem Solving

• Replaces worn or leaking disc brake calipers on Chevrolet Sidekick and Geo Suzuki Tracker
• Addresses symptoms of low brake pedal often caused by air in the brake system
• Helps resolve vehicle pulling to one side during braking due to caliper issues
• Eliminates brake squeal caused by caliper or mounting pin problems
• Restores proper brake hydraulic function with OE-spec inlet and bleeder port sizes

Installation Notes and Tips

Installation of the Cardone 19-B1486 caliper should follow manufacturer guidelines. Use the included hardware kit for mounting the caliper and bracket, but note that mounting bolts and brake pads must be sourced separately. Always use the brake fluid type recommended by the original equipment manufacturer, typically DOT 3 or DOT 4. Apply silicone grease to the floating caliper mounting pins to ensure smooth movement and prevent noise. Bleed the brake system thoroughly to remove any air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet or exceed OEM standards for fit, form, and function. The oil emulsion finish provides corrosion resistance to extend service life. Installation hardware is included to facilitate proper mounting. Warranty details are provided by Cardone and typically cover defects in materials and workmanship under normal use conditions.
