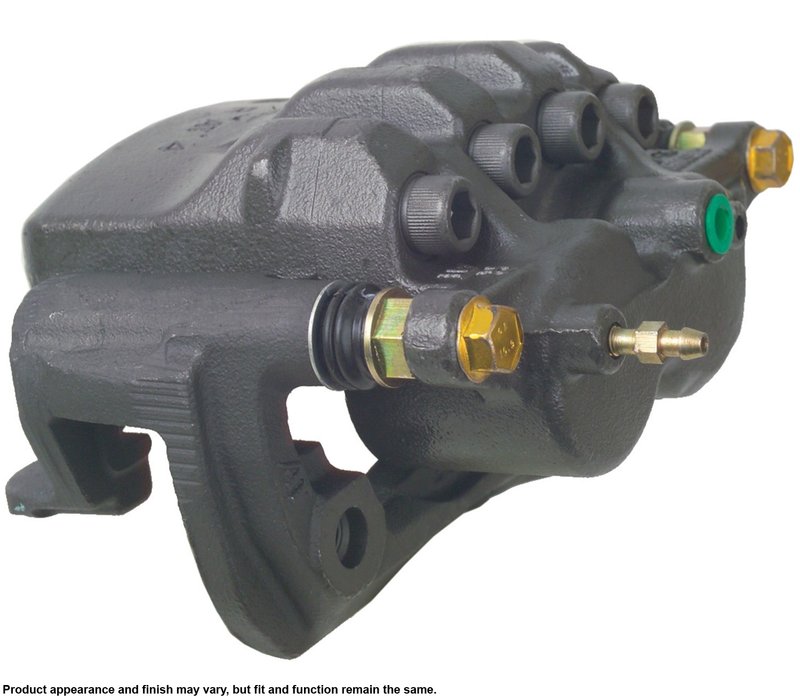

Cardone 19-B1610 Disc Brake Caliper - Front Right

Overview of Cardone Unloaded Caliper w/Bracket for Lexus LS400

The Cardone 19-B1610 Unloaded Caliper w/Bracket is a remanufactured disc brake caliper designed specifically for the Lexus LS400. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with bracket and hardware kit included
• Steel piston construction with two 44.4 mm diameter pistons
• Gray oil emulsion finish for corrosion resistance
• Bleeder port size: M7x1.0; inlet port size: M10x1.0
• Installation hardware included; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit. This design simplifies installation by providing all essential components except mounting bolts, ensuring compatibility and ease of replacement for vehicles like the Lexus LS400. The unloaded configuration means brake pads are not included, allowing for custom pad selection based on driver preference or vehicle requirements.

Technical Description and Features

This Cardone 19-B1610 caliper features a durable steel piston design with two pistons measuring approximately 44.4 mm in diameter, providing consistent clamping force for effective braking. The caliper’s gray oil emulsion finish offers protection against rust and corrosion, extending service life. It includes a bleeder port sized M7x1.0 and an inlet port sized M10x1.0, compatible with standard brake lines for the Lexus LS400. The package contains the caliper, bracket, and a hardware kit, though mounting bolts must be sourced separately.

Common Applications and Problem Resolution

• Replacement for worn or leaking brake calipers on Lexus LS400
• Addresses symptoms of low brake pedal caused by caliper issues
• Helps resolve uneven braking or vehicle pulling to one side
• Eliminates brake squeal related to caliper malfunction
• Restores proper brake fluid pressure and pedal feel

Installation Notes and Tips

When installing the Cardone 19-B1610 caliper on a Lexus LS400, use the included hardware kit for secure mounting. Note that mounting bolts are not included and should be reused or replaced as needed. Apply silicone grease to the floating caliper mounting pins to ensure smooth operation. Always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Bleed the brake system thoroughly to remove air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. The steel piston construction and protective oil emulsion finish contribute to long-term reliability. Installation hardware is included to facilitate proper fitment. Warranty details are provided by Cardone and typically cover defects in materials and workmanship under normal use conditions.
