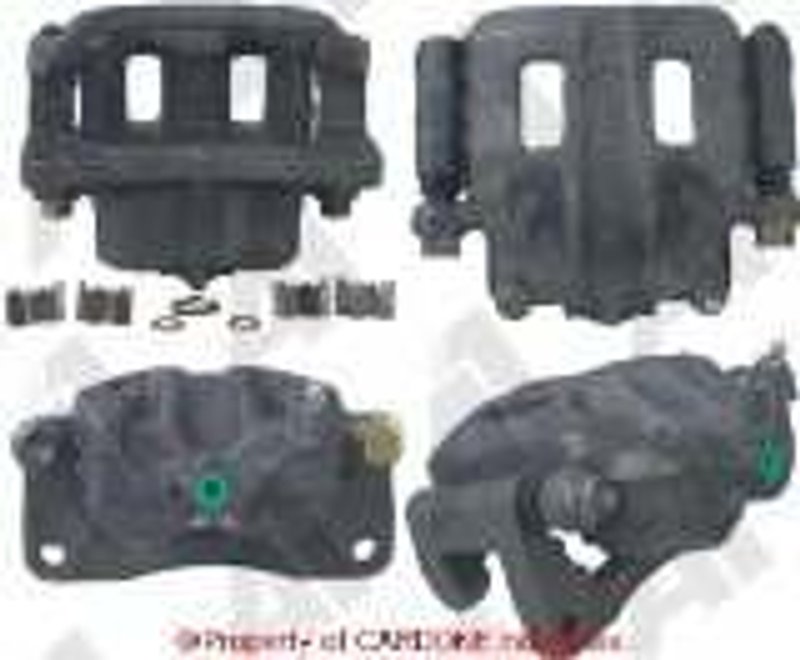

Cardone 19-B1691B Disc Brake Caliper - Front Right

Overview of Cardone Unloaded Caliper w/Bracket for Mazda MPV

The Cardone 19-B1691B Unloaded Caliper w/Bracket is a remanufactured disc brake caliper designed specifically for the Mazda MPV. This caliper features a durable oil emulsion finish and includes a bracket and hardware kit for a complete installation solution.

• Remanufactured disc brake caliper with steel pistons
• Includes mounting bracket and hardware kit
• Brake caliper finish: oil emulsion in gray color
• Bleeder port size: M8x1.0; inlet port size: M10x1.0
• Two 42.799 mm steel pistons for reliable braking performance
• Installation hardware included; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come with the necessary mounting bracket and hardware kit, but do not include brake pads. This line is designed to provide a cost-effective replacement option for vehicles like the Mazda MPV, ensuring compatibility and ease of installation while maintaining OEM specifications such as piston material and port sizes.

Technical Description and Features

This Cardone 19-B1691B caliper is engineered with two steel pistons measuring 42.799 mm in diameter, providing consistent and reliable braking force. The caliper’s oil emulsion finish in gray helps resist corrosion and wear. It features an M8x1.0 bleeder port and an M10x1.0 inlet port, matching OEM specifications for the Mazda MPV brake hydraulics system. The package includes the caliper, bracket, and a hardware kit, but does not include brake pads or mounting bolts.

Common Applications and Problem Resolution

• Replacement for worn or leaking brake calipers on Mazda MPV models
• Addresses symptoms such as low brake pedal height caused by caliper issues
• Helps resolve uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper malfunction
• Restores proper brake fluid flow and pressure in the brake hydraulics system

Installation Notes and Tips

When installing the Cardone 19-B1691B caliper on a Mazda MPV, use the included hardware kit for secure mounting. Note that mounting bolts are not included and must be sourced separately if needed. It is recommended to use the brake fluid type specified by the vehicle manufacturer, typically DOT 3 or DOT 4. Applying silicone grease on floating caliper mounting pins can help ensure smooth caliper movement and prevent noise. Always bleed the brake system thoroughly to remove air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. The steel pistons and oil emulsion finish contribute to durability and corrosion resistance. Installation hardware is included to facilitate proper fitment. Warranty details are provided by Cardone and typically cover defects in materials and workmanship, ensuring reliable performance for your Mazda MPV brake system.
