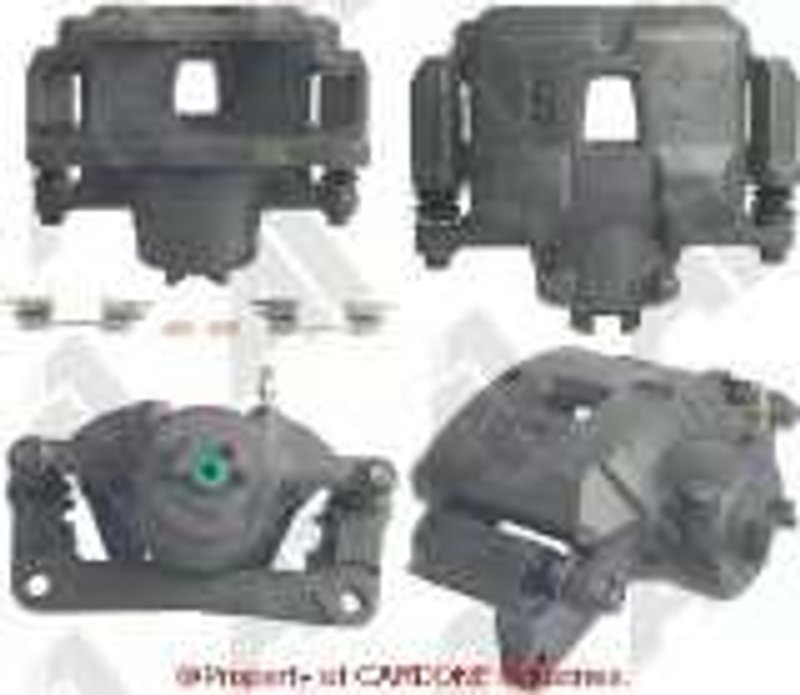

Cardone 19-B1947 Disc Brake Caliper - Front Left

Overview of Cardone Unloaded Caliper w/Bracket 19-B1947

The Cardone Unloaded Caliper w/Bracket 19-B1947 is a remanufactured disc brake caliper designed specifically for Subaru Impreza and Legacy models. Engineered with a steel piston and finished with an oil emulsion coating, this caliper ensures reliable braking performance and corrosion resistance.

• Remanufactured disc brake caliper with bracket and hardware kit included
• Steel piston with a 57.05 mm outer diameter for consistent braking force
• Oil emulsion finish in gray for enhanced durability
• Includes installation hardware; mounting bolts not included
• Compatible with Subaru Impreza and Legacy models
• Bleeder port size M7x1.0 and inlet port size M10x1.0

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the necessary bracket and hardware kit for installation. This line is designed to provide a cost-effective replacement option without sacrificing quality or fitment accuracy. The 19-B1947 part number belongs to this line, ensuring compatibility with specific Subaru models and simplifying the brake system repair process.

Technical Description and Features

This disc brake caliper features a single steel piston that measures approximately 57.05 mm in diameter, providing reliable hydraulic pressure to the brake pads. The caliper is coated with an oil emulsion finish in gray, which helps protect against corrosion and wear. The bleeder port size is M7x1.0, and the inlet port size is M10x1.0, matching OEM specifications for proper brake fluid flow. The package includes the caliper, bracket, and a hardware kit, though mounting bolts are not included. This remanufactured caliper is designed to meet or exceed OEM standards for fit and function on Subaru Impreza and Legacy vehicles.

Common Applications and Problem Solving

• Replacement for worn or leaking brake calipers on Subaru Impreza and Legacy
• Resolves issues with low brake pedal caused by air in the brake system
• Addresses uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper malfunction
• Restores proper brake fluid flow and pressure for consistent stopping power

Installation Notes and Tips

When installing the Cardone 19-B1947 caliper, use the included hardware kit for secure mounting. Note that mounting bolts are not included and should be reused if in good condition or replaced as needed. It is recommended to use the brake fluid type specified by the vehicle manufacturer, typically DOT 3 or DOT 4. Applying silicone grease on floating caliper mounting pins can help maintain smooth caliper movement. Bleed the brake system thoroughly after installation to remove any air and ensure proper pedal feel.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM performance standards. Cardone provides a warranty on this part to cover defects in materials and workmanship, offering assurance of its reliability and durability when installed on compatible Subaru Impreza and Legacy models.
