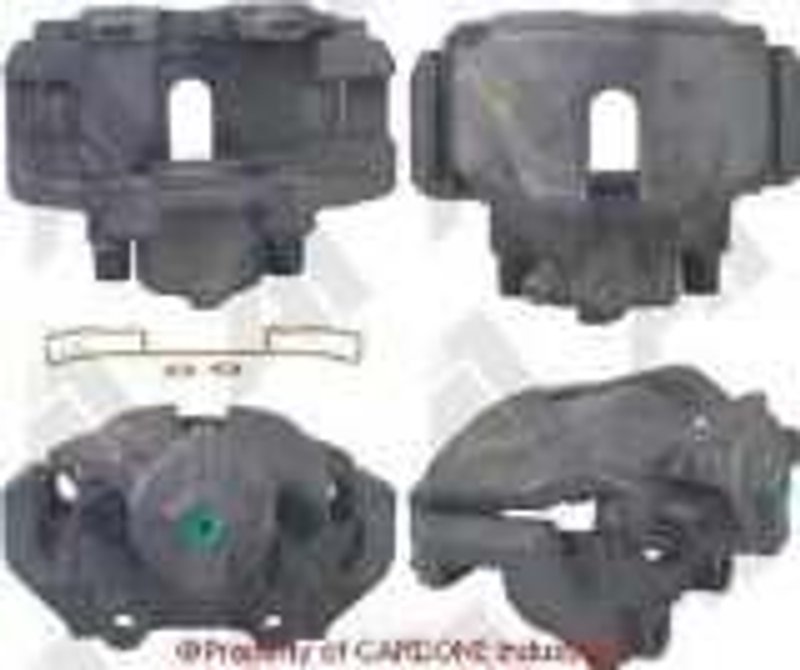

Cardone 19-B2038 Disc Brake Caliper - Front Left

Overview of Cardone Unloaded Caliper w/Bracket 19-B2038

The Cardone Unloaded Caliper w/Bracket 19-B2038 is a remanufactured disc brake caliper designed for select Saab and Saturn models. Engineered with a steel piston and an oil emulsion finish, this caliper ensures reliable braking performance and corrosion resistance.

• Remanufactured disc brake caliper with bracket and hardware kit included
• Steel piston with a 56.95 mm outer diameter for consistent braking force
• Oil emulsion gray finish for enhanced durability
• Compatible with Saab 9-3, 9-5, 900 and Saturn L100, L200, L300, LS series, LW series models
• Includes bleeder port size M8x1.25 and inlet port size M10x1.5
• Installation hardware included; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line provides remanufactured calipers that come complete with the mounting bracket and necessary hardware kit. This setup allows for a streamlined installation process by including all essential components except mounting bolts. The unloaded design means the caliper does not include brake pads, giving flexibility for customers to use their preferred pad options.

Technical Description and Features

This Cardone 19-B2038 caliper features a single steel piston with a precise 56.9468 mm outer diameter, ensuring effective hydraulic pressure application. The caliper’s oil emulsion finish in gray offers protection against rust and wear, extending service life. It is designed with a bleeder port size of M8x1.25 and an inlet port size of M10x1.5, compatible with original equipment specifications. The product is remanufactured to meet OEM standards and includes a hardware kit for installation, though mounting bolts are not provided.

Compatible Vehicles and Applications

• Saab 9-3 and 9-5 models
• Saab 900 series
• Saturn L100, L200, L300
• Saturn LS, LS1, LS2
• Saturn LW1, LW2, LW200, LW300

Common Issues Addressed by This Caliper

• Brake pedal feels low due to caliper malfunction or air in brake lines
• Uneven braking or vehicle pulling to one side during braking
• Brake squeal caused by caliper or mounting pin issues
• Corrosion or wear on original caliper components
• Replacement of worn or damaged calipers to restore braking performance

Installation Notes and Tips

When installing the Cardone 19-B2038 caliper, use the included hardware kit for proper mounting. Note that mounting bolts are not included and must be sourced separately if needed. Apply silicone grease on floating caliper mounting pins to ensure smooth operation. Always use brake fluid recommended by the vehicle manufacturer, typically DOT 3 or DOT 4, and bleed the brake system thoroughly to remove air and prevent low pedal issues.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM performance standards. Cardone provides a limited warranty covering defects in materials and workmanship. For optimal safety and reliability, ensure proper installation and maintenance according to manufacturer guidelines.
