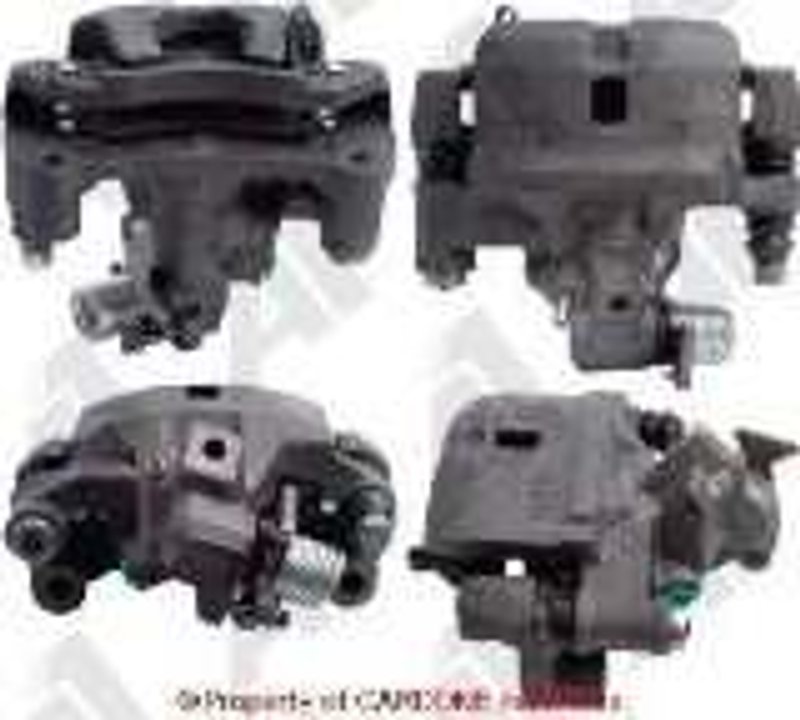

Cardone 19-B2077 Disc Brake Caliper - Front Right

Overview of Cardone Unloaded Caliper w/Bracket 19-B2077

The Cardone Unloaded Caliper w/Bracket 19-B2077 is a remanufactured disc brake caliper designed specifically for Toyota Camry and Sienna models. Engineered with a steel piston and finished with an oil emulsion coating, this caliper ensures reliable braking performance and corrosion resistance.

• Remanufactured disc brake caliper with bracket and hardware kit included
• Compatible with Toyota Camry and Sienna vehicles
• Steel piston with a 60.198 mm outer diameter for consistent braking force
• Oil emulsion finish in gray for enhanced durability
• Bleeder port size M7x1.0 and inlet port size M10x1.0 for proper hydraulic connections
• Includes installation hardware; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit. This design simplifies installation by providing all essential components except mounting bolts, which must be sourced separately. The unloaded configuration means brake pads are not included, allowing for flexibility in pad selection based on vehicle requirements.

Technical Description and Features

This Cardone 19-B2077 caliper features a single steel piston with a precise 60.198 mm outer diameter, ensuring effective hydraulic pressure application for Toyota Camry and Sienna brake systems. The caliper’s oil emulsion finish provides resistance against corrosion and wear, extending service life. The bleeder port (M7x1.0) and inlet port (M10x1.0) sizes conform to OEM specifications, facilitating proper brake fluid flow and maintenance. The gray color finish aligns with standard brake component aesthetics.

Common Applications and Problem Resolution

• Replacement for worn or leaking disc brake calipers on Toyota Camry and Sienna
• Addresses symptoms such as low brake pedal height caused by air in the brake system
• Helps resolve uneven braking or vehicle pull to one side during braking
• Eliminates brake squeal related to caliper malfunction or hardware issues
• Restores proper brake hydraulic function for improved safety and control

Installation Notes and Tips

Installation of the Cardone 19-B2077 caliper requires the use of the included hardware kit; however, mounting bolts are not provided and should be obtained separately. It is recommended to use silicone grease on floating caliper mounting pins to ensure smooth operation. Always use brake fluid recommended by the vehicle manufacturer, typically DOT 3 or DOT 4, to maintain system integrity. Bleeding the brake system thoroughly after installation is essential to prevent low brake pedal issues caused by trapped air.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. Cardone provides a limited warranty covering defects in materials and workmanship, ensuring dependable performance for Toyota Camry and Sienna owners. The product is designed to comply with environmental regulations, although it is not classified as e-waste.
