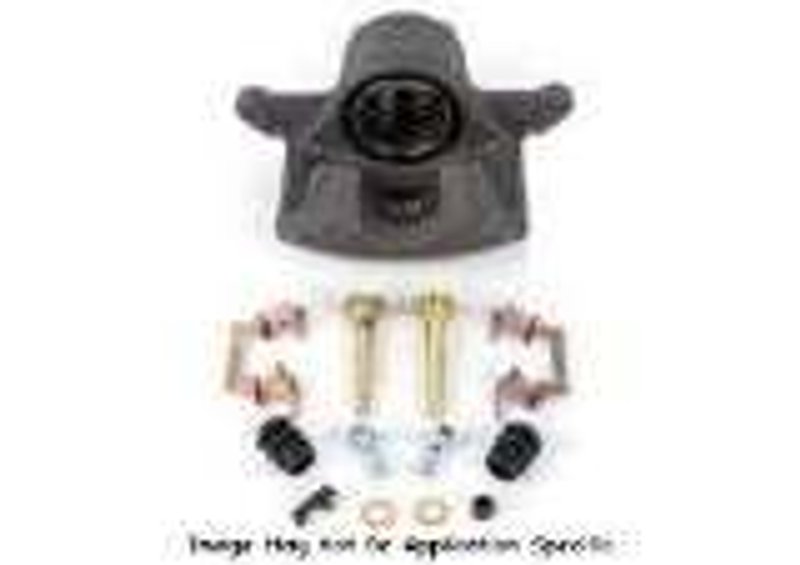

Cardone 19-B2591A Disc Brake Caliper - Front Right

Overview of Cardone Unloaded Caliper w/Bracket 19-B2591A

The Cardone Unloaded Caliper w/Bracket (part number 19-B2591A) is a remanufactured disc brake caliper designed specifically for Volvo models including the S60, S80, V70, and XC70. Engineered to meet OEM specifications, this caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with steel piston
• Includes caliper, bracket, and hardware kit for installation
• Brake caliper finish: oil emulsion with gray color
• Bleeder and inlet port size: M10x1.0
• Compatible with Volvo S60, S80, V70, and XC70 models

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit, but without brake pads. This configuration allows for easier installation and ensures compatibility with original equipment mounting points. The 19-B2591A caliper features a single steel piston with a 59.87 mm outer diameter, providing consistent braking force and heat resistance suitable for Volvo vehicles.

Technical Description and Features

This disc brake caliper is finished with an oil emulsion coating in gray, which helps protect against corrosion and wear. The caliper includes a bleeder port and inlet port both sized M10x1.0, matching OEM specifications for proper brake fluid flow and bleeding. The piston is made of steel, offering durability and reliable performance under various driving conditions. Installation hardware is included, although mounting bolts are not provided. The caliper uses silicone grease on floating caliper mounting pins to maintain smooth operation and reduce noise.

Common Applications and Problem Solving

• Replacement for worn or leaking calipers on Volvo S60, S80, V70, and XC70
• Addresses symptoms such as low brake pedal caused by air in the brake system
• Helps resolve uneven braking or vehicle pulling to one side during braking
• Reduces brake squeal related to caliper mounting pin lubrication issues
• Restores proper brake fluid flow and pressure for consistent pedal feel

Installation Notes and Tips

When installing the Cardone 19-B2591A caliper, always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. The included hardware kit should be used to ensure secure mounting, but note that mounting bolts are not included and may need to be reused or sourced separately. Applying silicone grease to the floating caliper mounting pins is recommended to prevent noise and ensure smooth caliper movement. Bleed the brake system thoroughly after installation to remove any air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. Cardone provides a limited warranty on this part, covering defects in materials and workmanship. Using this caliper helps maintain the safety and reliability of your Volvo's braking system.
