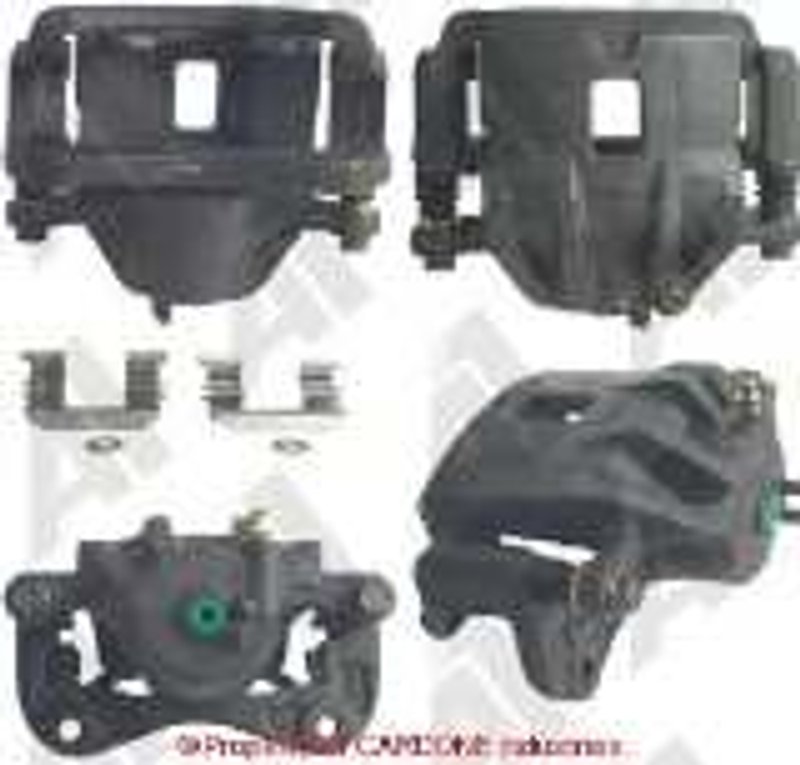

Cardone 19-B2647 Disc Brake Caliper - Front Right

Overview of Cardone Unloaded Caliper w/Bracket 19-B2647

The Cardone Unloaded Caliper w/Bracket 19-B2647 is a remanufactured disc brake caliper designed specifically for Hyundai Elantra and Tiburon models. Engineered to meet OEM specifications, this caliper ensures reliable braking performance with a durable steel piston and an oil emulsion finish.

• Remanufactured disc brake caliper with bracket included
• Compatible with Hyundai Elantra and Tiburon
• Steel piston with 53.87 mm outer diameter
• Oil emulsion gray finish for corrosion resistance
• Includes installation hardware kit (mounting bolts not included)
• Bleeder and inlet port size: M10x1.0

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line provides remanufactured calipers that come complete with the mounting bracket and necessary hardware kit for installation. This line is designed to simplify brake system repairs by offering a ready-to-install caliper assembly without brake pads, allowing for flexibility in pad selection. The 19-B2647 model maintains OEM fitment and function for Hyundai vehicles, ensuring proper braking system integration.

Technical Description and Features

This Cardone disc brake caliper features a single steel piston with a precise 53.8734 mm outer diameter, providing consistent clamping force on the brake rotor. The caliper is finished with an oil emulsion coating in gray, which helps resist corrosion and extends service life. Both the bleeder and inlet ports are sized M10x1.0, matching OEM specifications for easy brake line connection. The caliper uses a silicone grease on floating caliper mounting pins to ensure smooth operation and reduce noise. Installation hardware is included, though mounting bolts must be sourced separately.

Common Applications and Problem Solving

• Replaces worn or leaking calipers on Hyundai Elantra and Tiburon models
• Addresses symptoms of low brake pedal often caused by air in the brake system
• Helps resolve brake pull issues during braking due to caliper malfunction
• Eliminates brake squeal caused by caliper or mounting pin issues
• Restores proper hydraulic pressure and brake fluid flow

Installation Notes and Tips

When installing the Cardone 19-B2647 caliper, always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Apply silicone grease to the floating caliper mounting pins to ensure smooth movement and prevent noise. Although the hardware kit is included, verify if mounting bolts are required and source them if necessary. Bleed the brake system thoroughly after installation to remove any air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. Cardone provides a limited warranty covering defects in materials and workmanship, ensuring dependable performance for Hyundai Elantra and Tiburon brake systems. Using this caliper helps maintain vehicle safety and braking reliability.
