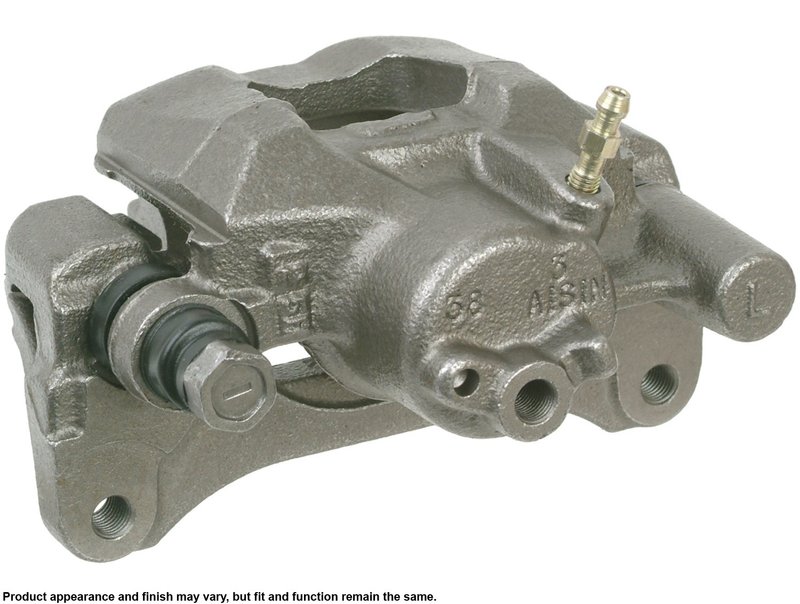

Cardone 19-B2685B Disc Brake Caliper - Rear Left

Overview of Cardone Unloaded Caliper w/Bracket for Toyota Highlander

The Cardone 19-B2685B Unloaded Caliper w/Bracket is a remanufactured disc brake caliper designed specifically for Toyota Highlander models. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with bracket included
• Steel piston with 38.05 mm outer diameter for consistent braking force
• Oil emulsion finish in gray for corrosion resistance
• Includes installation hardware kit (mounting bolts not included)
• Bleeder port size M7x1.0 and inlet port size M10x1.0 for compatibility

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the necessary bracket and hardware kit for installation. This line is designed to provide a cost-effective replacement option without pads, allowing for flexibility in brake pad selection. The 19-B2685B model fits Toyota Highlander vehicles and features a steel piston for durability and consistent braking performance.

Technical Description and Features

This Cardone disc brake caliper features a single steel piston measuring 38.0492 mm in diameter, providing reliable clamping force on the brake rotor. The caliper is finished with an oil emulsion coating in gray, which helps resist corrosion and extends service life. The bleeder port size is M7x1.0, and the inlet port size is M10x1.0, ensuring compatibility with the Toyota Highlander's brake hydraulic system. The package includes the caliper, bracket, and a hardware kit for installation, though mounting bolts are not included. This remanufactured caliper is designed to meet OEM standards and is suitable for replacing worn or damaged calipers on compatible Highlander models.

Common Applications and Problem Solving

• Replaces seized or sticking calipers causing uneven brake pad wear
• Addresses brake pedal issues related to caliper malfunction
• Resolves vehicle pulling to one side during braking
• Eliminates brake squeal caused by caliper hardware problems
• Restores proper brake hydraulic function in Toyota Highlander models

Installation Notes and Tips

When installing the Cardone 19-B2685B caliper on a Toyota Highlander, ensure the use of the recommended brake fluid type as specified by the vehicle manufacturer. The caliper comes with a hardware kit, but mounting bolts are not included, so verify bolt condition before installation. Use silicone grease on floating caliper mounting pins to maintain smooth operation. Bleed the brake system thoroughly to remove any air and prevent low brake pedal symptoms.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM performance standards. It is built to provide reliable braking performance and durability. Installation hardware is included to facilitate proper fitment. For warranty details, refer to Cardone's standard coverage policies applicable to remanufactured brake components.
