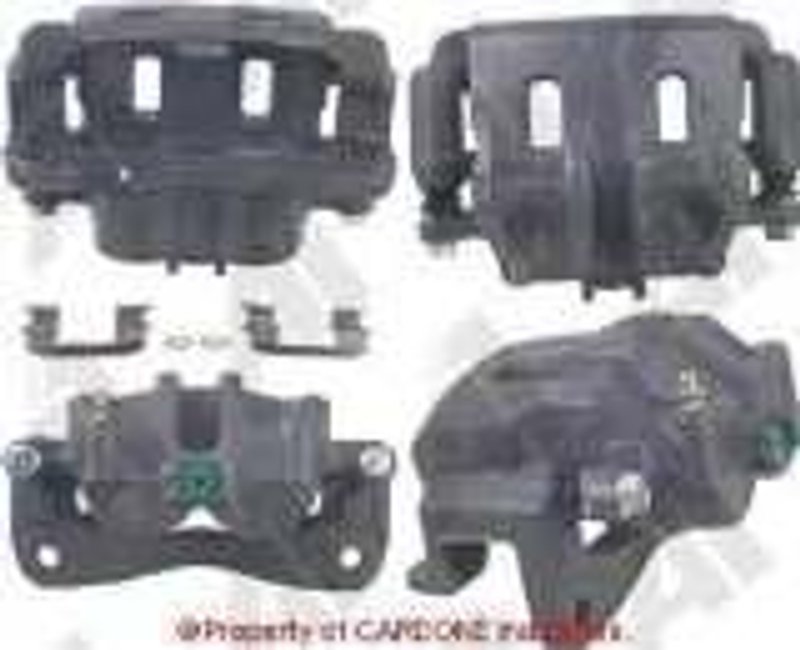

Cardone 19-B2692 Disc Brake Caliper - Front Left

Overview of Cardone Unloaded Caliper w/Bracket for Kia Sedona

The Cardone 19-B2692 Unloaded Caliper w/Bracket is a remanufactured disc brake caliper designed specifically for Kia Sedona models. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with bracket and hardware kit included
• Steel piston construction with two pistons, 44.958 mm outer diameter
• Bleeder and inlet port size: M10x1.0 for precise brake fluid management
• Oil emulsion finish in gray for corrosion resistance
• Installation hardware included; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit. This design simplifies installation by providing all essential components except mounting bolts, ensuring compatibility and ease of replacement for vehicles like the Kia Sedona. The unloaded configuration means brake pads are not included, allowing for custom pad selection based on user preference or OEM recommendations.

Technical Description and Features

This Cardone 19-B2692 caliper features a durable steel piston material with two pistons measuring 44.958 mm in diameter, providing consistent clamping force for effective braking. The caliper’s gray oil emulsion finish offers protection against corrosion and wear. Both the bleeder port and inlet port are sized M10x1.0, matching OEM specifications for proper brake fluid flow and maintenance. The product is remanufactured to meet strict quality standards, ensuring reliable operation on Kia Sedona vehicles.

Common Applications and Problem Resolution

• Replacement for worn or leaking brake calipers on Kia Sedona models
• Addresses symptoms such as low brake pedal caused by air in the brake system
• Helps resolve uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper malfunction or hardware issues
• Restores proper brake fluid sealing and pressure for safe stopping

Installation Notes and Tips

When installing the Cardone 19-B2692 caliper, use the included hardware kit for mounting the caliper and bracket. Note that mounting bolts are not included and should be reused or replaced as needed. Apply silicone grease on floating caliper mounting pins to ensure smooth operation. Always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Bleed the brake system thoroughly to remove air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. The product condition is remanufactured, ensuring components are restored to reliable working order. Installation hardware is included to facilitate proper mounting. Warranty details are provided by Cardone and typically cover defects in materials and workmanship, supporting long-term performance on Kia Sedona vehicles.
