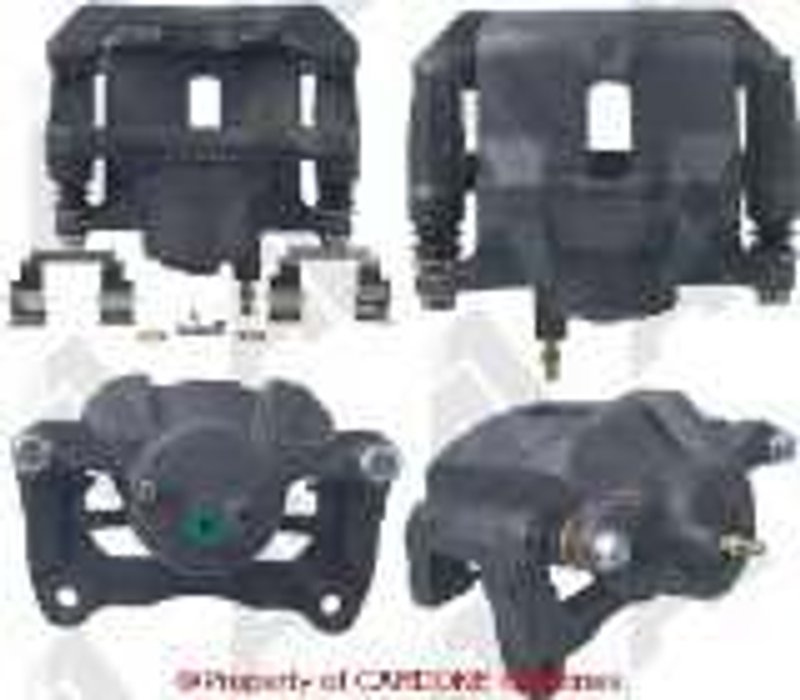

Cardone 19-B2698 Disc Brake Caliper - Front Left

Overview of Cardone Unloaded Caliper w/Bracket 19-B2698

The Cardone Unloaded Caliper w/Bracket 19-B2698 is a remanufactured disc brake caliper designed for reliable braking performance. This caliper is compatible with select Pontiac and Toyota models, including the Corolla, Matrix, and Vibe, providing a precise fit and dependable operation.

• Remanufactured disc brake caliper with steel piston
• Includes caliper, bracket, and hardware kit for installation
• Brake caliper finished with oil emulsion in gray color
• Bleeder port size M7x1.0 and inlet port size M10x1.0
• Compatible with Pontiac and Toyota Corolla, Matrix, and Vibe models

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit. This design simplifies installation by providing all essential components except mounting bolts, ensuring a streamlined replacement process. The unloaded caliper means brake pads are not included, allowing for flexibility in pad selection based on vehicle requirements.

Technical Description and Features

This Cardone 19-B2698 caliper features a single steel piston with an outer diameter of approximately 57.05 mm, providing consistent hydraulic pressure for effective braking. The caliper is finished with an oil emulsion coating in gray, which helps resist corrosion and extends service life. It includes a bleeder port sized M7x1.0 and an inlet port sized M10x1.0, compatible with standard brake lines for the specified vehicle models. The package contains the caliper, bracket, and a hardware kit, but does not include brake pads or mounting bolts.

Common Applications and Problem Solving

• Replacement for worn or leaking calipers on Pontiac and Toyota Corolla, Matrix, and Vibe
• Addresses issues such as uneven brake pad wear and pulling to one side during braking
• Helps resolve symptoms of low brake pedal often caused by air in the brake system
• Restores proper brake fluid pressure and pedal feel
• Eliminates squealing noises related to caliper malfunction or hardware wear

Installation Notes and Tips

Installation of the Cardone 19-B2698 caliper requires proper brake fluid and lubrication. Use the brake fluid type recommended by the original equipment manufacturer (OEM) for your vehicle. A silicone grease is advised for floating caliper mounting pins to ensure smooth operation. New hardware is included with the caliper; however, mounting bolts are not provided and should be reused or replaced as needed. Always bleed the brake system thoroughly after installation to remove air and restore pedal firmness.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM specifications for fit, form, and function. Cardone provides a limited warranty covering defects in materials and workmanship, ensuring confidence in the product's durability and performance. The 19-B2698 part number is backed by Cardone's quality standards for brake hydraulics components compatible with Pontiac and Toyota vehicles.
