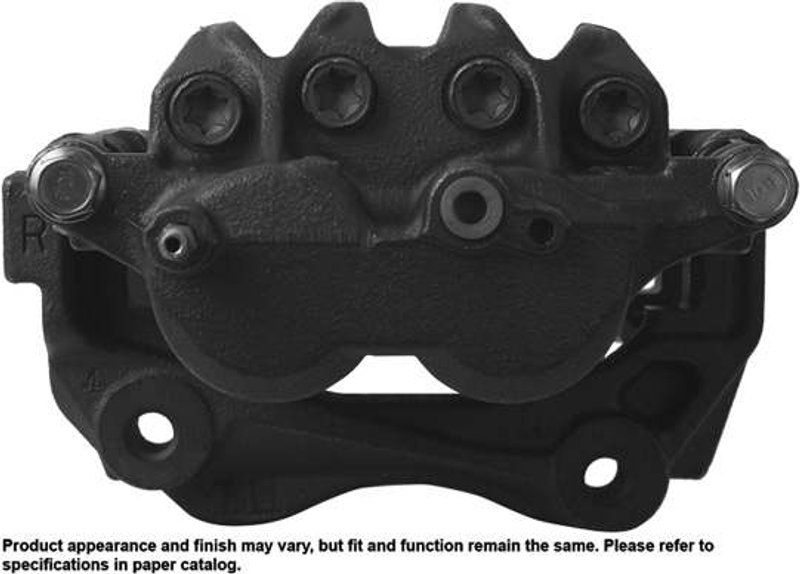

Cardone 19-B2774 Disc Brake Caliper - Front Right

Overview of Cardone Unloaded Caliper w/Bracket 19-B2774

The Cardone Unloaded Caliper w/Bracket 19-B2774 is a remanufactured disc brake caliper designed specifically for Lexus GS300, GS400, GS430, and SC430 models. Engineered with a steel piston and finished with an oil emulsion coating, this caliper ensures reliable braking performance and corrosion resistance.

• Remanufactured disc brake caliper with bracket and hardware kit included
• Compatible with Lexus GS300, GS400, GS430, and SC430
• Steel piston material with two pistons, 44.4 mm outer diameter
• Oil emulsion brake caliper finish in gray color for durability
• Includes installation hardware but excludes mounting bolts and brake pads
• Bleeder port size M7x1.0 and inlet port size M10x1.0

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line provides remanufactured calipers that come complete with the mounting bracket and necessary hardware kit. This setup simplifies installation by including all essential components except mounting bolts and brake pads. The unloaded design means the caliper is supplied without brake pads, allowing for customization or reuse of existing pads. This line is tailored for professional repair and maintenance of brake hydraulics on compatible Lexus vehicles.

Technical Description and Features

This Cardone 19-B2774 caliper features a steel piston construction with two pistons measuring approximately 44.4 mm in diameter, providing consistent and even brake pad pressure. The oil emulsion finish in gray offers protection against corrosion and wear. The caliper includes a bleeder port sized M7x1.0 and an inlet port sized M10x1.0, compatible with OEM brake lines. Installation hardware is included to facilitate mounting, though mounting bolts and brake pads must be sourced separately. The remanufactured condition ensures the caliper meets functional standards while offering a cost-effective replacement option.

Common Applications and Problem Resolution

• Replaces worn or leaking calipers on Lexus GS300, GS400, GS430, and SC430
• Addresses issues such as uneven braking or vehicle pulling to one side
• Resolves symptoms of low brake pedal often caused by caliper malfunction
• Eliminates brake squeal related to caliper hardware or piston problems
• Restores proper brake fluid flow and pressure in the brake hydraulic system

Installation Notes and Tips

When installing the Cardone 19-B2774 caliper, use the included hardware kit for proper mounting. Note that mounting bolts and brake pads are not included and should be obtained separately. It is recommended to apply silicone grease on floating caliper mounting pins to ensure smooth operation. Always use the brake fluid type specified by the vehicle manufacturer, typically DOT 3 or DOT 4. Bleed the brake system thoroughly to remove any air and prevent a low brake pedal feel.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM specifications for fit, form, and function. The product is designed to provide reliable braking performance and durability. Installation hardware is included to support proper fitment. Warranty details are provided by Cardone and typically cover defects in materials and workmanship under normal use conditions.
