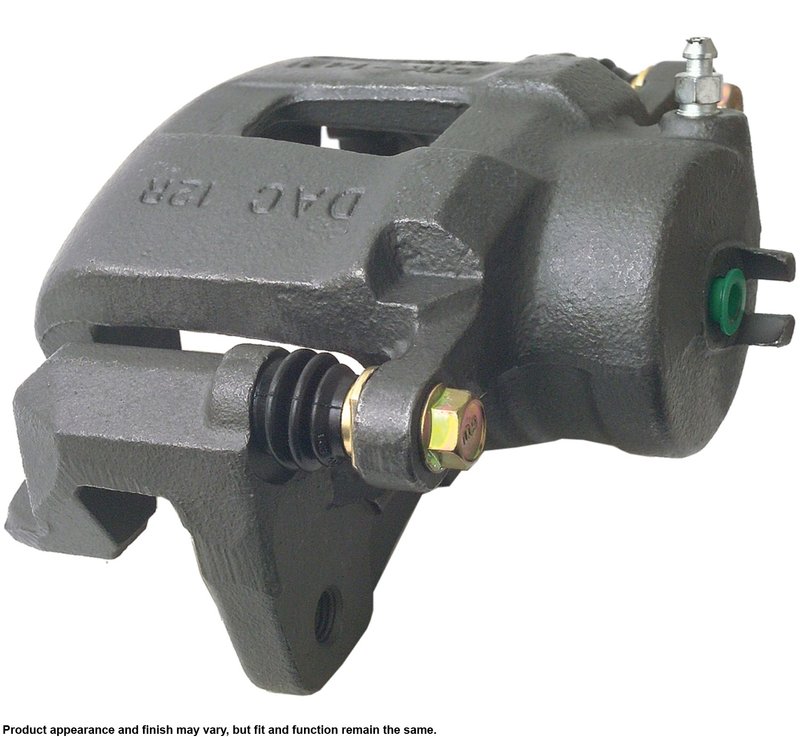

Cardone 19-B2811 Disc Brake Caliper - Front Right

Overview of Cardone Unloaded Caliper w/Bracket 19-B2811

The Cardone Unloaded Caliper w/Bracket 19-B2811 is a remanufactured disc brake caliper designed for select Chevrolet, Pontiac, and Suzuki models. Engineered to meet OEM specifications, this caliper provides reliable braking performance for vehicles such as the Chevrolet Aveo, Pontiac G3, and Suzuki Swift.

• Remanufactured disc brake caliper with bracket included
• Steel piston with 53.975 mm outer diameter
• Brake caliper finished with oil emulsion in gray color
• Includes installation hardware kit (mounting bolts not included)
• Bleeder port size M10x1.0 and inlet port size M10x1.5
• Compatible with Chevrolet Aveo, Pontiac G3, Suzuki Swift, and related models

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit for installation. This line is designed to simplify brake system repairs by providing a ready-to-install caliper assembly without brake pads, allowing for flexibility in pad selection. The 19-B2811 part number is part of this line, ensuring compatibility and quality for specific vehicle applications.

Technical Description and Features

This Cardone disc brake caliper features a single steel piston measuring 53.975 mm in diameter, providing consistent braking force. The caliper is finished with an oil emulsion coating in gray, which helps resist corrosion and wear. It includes a bleeder port sized M10x1.0 and an inlet port sized M10x1.5, matching OEM specifications for proper brake fluid flow. The package contains the caliper, bracket, and a hardware kit for installation, though mounting bolts are not included. This remanufactured caliper is designed for use on Chevrolet Aveo, Pontiac G3, Suzuki Swift, and other compatible models listed in the fitment.

Common Applications and Problem Solving

• Replaces worn or leaking disc brake calipers on Chevrolet Aveo and Pontiac G3 models
• Addresses uneven brake pad wear and pulling to one side during braking
• Resolves symptoms of low brake pedal often caused by caliper issues or air in the brake system
• Eliminates brake squeal related to caliper malfunction or hardware wear
• Restores proper brake fluid sealing and piston movement for Suzuki Swift and related vehicles

Installation Notes and Tips

When installing the Cardone 19-B2811 caliper, use the included hardware kit for secure mounting. Note that mounting bolts are not included and must be sourced separately if needed. Apply silicone grease to the floating caliper mounting pins to ensure smooth operation. Always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Bleed the brake system thoroughly to remove any air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. Cardone provides a limited warranty covering defects in materials and workmanship, ensuring dependable performance for your Chevrolet Aveo, Pontiac G3, or Suzuki Swift. Refer to Cardone's warranty terms for specific coverage details.
