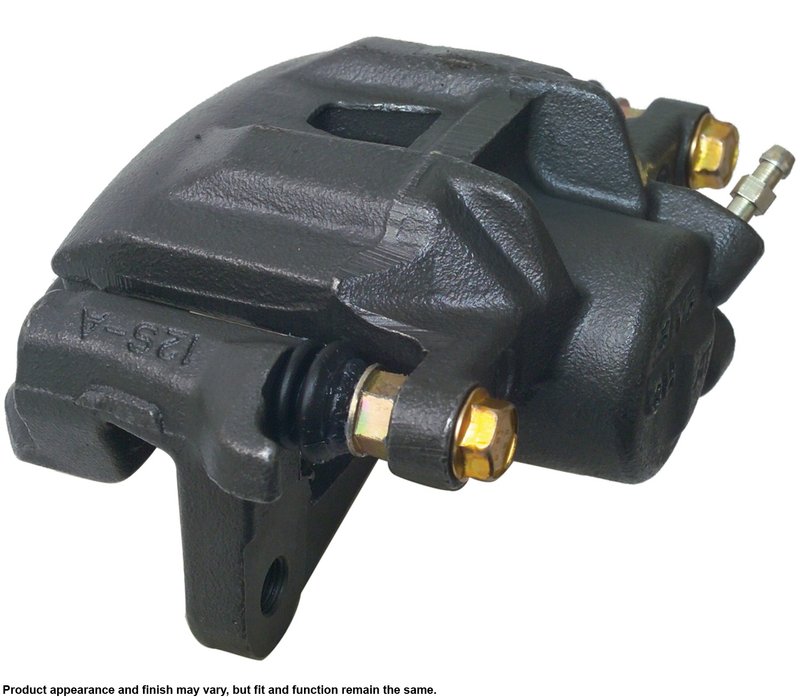

Cardone 19-B2873 Disc Brake Caliper - Rear Left

Overview of Cardone Unloaded Caliper w/Bracket for Toyota Sienna

The Cardone 19-B2873 Unloaded Caliper w/Bracket is a remanufactured disc brake caliper designed specifically for Toyota Sienna models. Engineered with a steel piston and finished with an oil emulsion coating, this caliper ensures reliable braking performance and corrosion resistance.

• Remanufactured disc brake caliper with bracket and hardware kit included
• Steel piston with a 42.799 mm outer diameter for consistent braking force
• Oil emulsion finish in gray color for enhanced durability
• Bleeder port size: M7x1.0 and inlet port size: M10x1.0 for proper hydraulic connections
• Installation hardware included; mounting bolts not included

Details on the Unloaded Caliper w/Bracket Product Line

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the necessary bracket and hardware kit for installation. This line is designed to provide a direct replacement solution for vehicles requiring a disc brake caliper assembly without brake pads included. The 19-B2873 model fits Toyota Sienna vehicles and features a steel piston for durability and consistent braking performance.

Product Features and Specifications

This disc brake caliper features a single steel piston measuring 42.799 mm in diameter, providing reliable clamping force on the brake rotor. The caliper is finished with an oil emulsion coating in gray, which helps resist corrosion and wear. The bleeder port and inlet port sizes (M7x1.0 and M10x1.0 respectively) ensure compatibility with the vehicle’s brake hydraulic system. The package includes the caliper, bracket, and a hardware kit to facilitate installation, though brake pads and mounting bolts are not included.

Common Applications and Issues Addressed

• Replacement for worn or leaking brake calipers on Toyota Sienna models
• Resolves brake pedal issues caused by caliper malfunction or air in the brake lines
• Addresses uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper hardware or piston problems
• Restores proper hydraulic pressure and brake fluid flow in the brake system

Installation Notes and Tips

When installing the Cardone 19-B2873 caliper on a Toyota Sienna, use the included hardware kit for secure mounting. It is recommended to apply silicone grease on the floating caliper mounting pins to ensure smooth operation. Always use the brake fluid type specified by the original equipment manufacturer to maintain system integrity. Bleed the brake system thoroughly to remove any air and achieve a firm brake pedal feel. Note that mounting bolts are not included and must be reused or sourced separately.

Quality Assurance and Warranty

This remanufactured caliper undergoes a rigorous rebuilding process to meet or exceed OEM standards. Cardone provides a limited warranty on this part, covering defects in materials and workmanship. Using this caliper helps maintain the safety and performance of the Toyota Sienna’s braking system.
