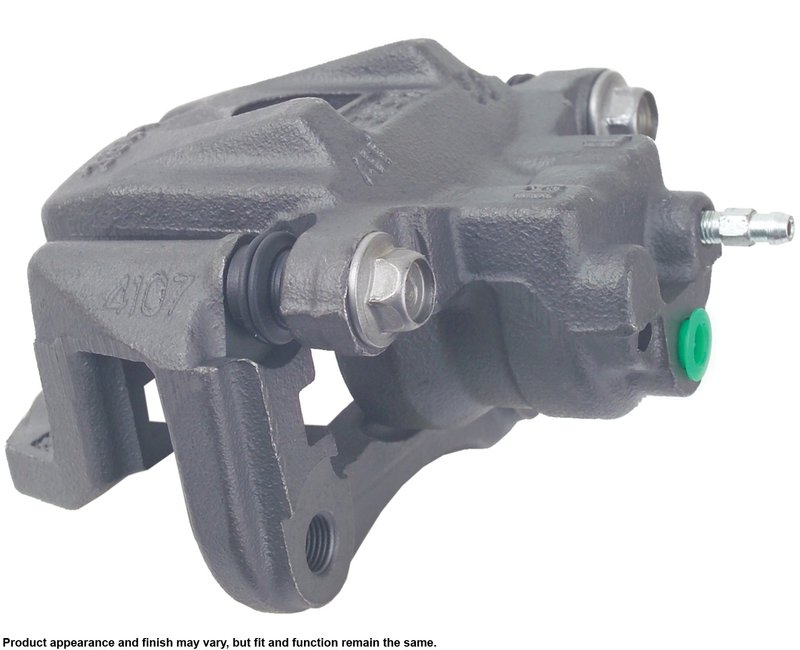

Cardone 19-B2905 Disc Brake Caliper - Rear Left

Overview of Cardone Unloaded Caliper w/Bracket for Toyota Highlander

The Cardone 19-B2905 Unloaded Caliper w/Bracket is a remanufactured disc brake caliper designed specifically for Toyota Highlander models. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with bracket and hardware kit included
• Steel piston with a 37.973 mm outer diameter for consistent braking force
• Bleeder port size M7x1.0 and inlet port size M10x1.0 for proper hydraulic connection
• Oil emulsion finish in gray for corrosion resistance
• Installation hardware included; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit. This setup simplifies installation by providing all essential components except mounting bolts, ensuring compatibility and ease of replacement for Toyota Highlander brake hydraulics.

Technical Description and Features

This Cardone 19-B2905 disc brake caliper features a single steel piston with a precise 37.973 mm diameter, designed to deliver consistent clamping force on the brake pads. The caliper’s oil emulsion finish in gray provides protection against corrosion and wear. It includes a bleeder port sized M7x1.0 and an inlet port sized M10x1.0, matching Toyota Highlander brake system specifications. The package contains the caliper, bracket, and a hardware kit, though mounting bolts are not included. The caliper uses silicone grease on floating caliper mounting pins to ensure smooth operation and reduce noise.

Common Applications and Problem Resolution

• Replaces worn or damaged brake calipers on Toyota Highlander models
• Addresses symptoms such as low brake pedal caused by air in the brake system
• Helps resolve uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper mounting pin issues
• Restores proper hydraulic pressure and brake fluid flow

Installation Notes and Tips

When installing the Cardone 19-B2905 caliper on a Toyota Highlander, use the included hardware kit for secure mounting. Apply silicone grease to the floating caliper mounting pins to prevent noise and ensure smooth movement. Always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Bleed the brake system thoroughly to remove any air and restore proper pedal feel. Note that mounting bolts are not included and must be reused or sourced separately.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. The steel piston and oil emulsion finish contribute to long-lasting performance. Installation hardware is included to facilitate proper fitment. Warranty details are provided by Cardone and typically cover defects in materials and workmanship under normal use.
