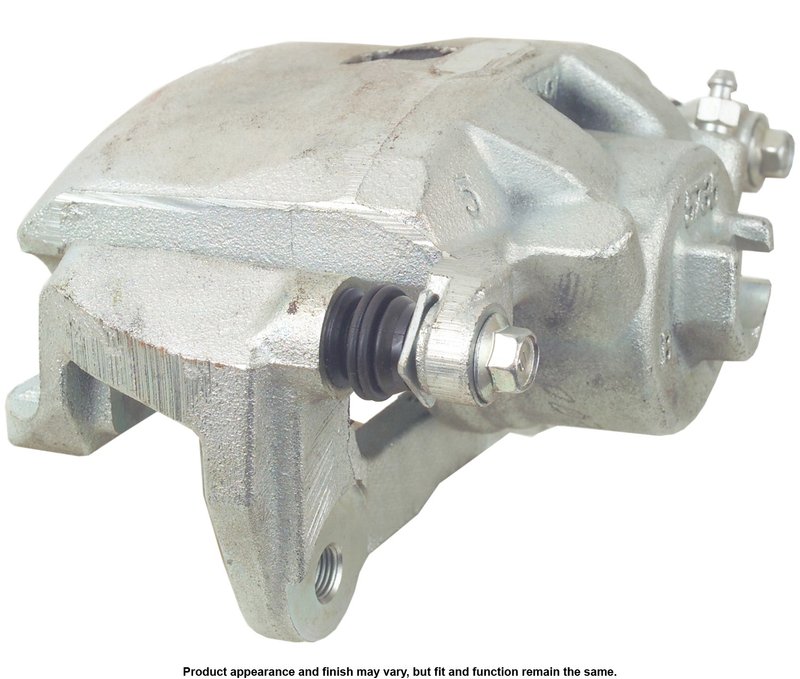

Cardone 19-B2917 Disc Brake Caliper - Front Left or Front Right

Overview of Cardone Unloaded Caliper w/Bracket 19-B2917

The Cardone Unloaded Caliper w/Bracket 19-B2917 is a remanufactured disc brake caliper designed for select Acura and Honda vehicles. Engineered to meet OEM specifications, this caliper provides reliable braking performance for models such as the Honda Civic, CR-V, and Acura ILX.

• Remanufactured disc brake caliper with steel piston
• Includes caliper, bracket, and hardware kit
• Caliper finish: oil emulsion with gray color
• Bleeder and inlet port size: M10x1.0
• Installation hardware included; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the necessary bracket and hardware kit for installation. This line is designed to simplify brake system repairs by providing a ready-to-install caliper assembly compatible with specific vehicle applications. The 19-B2917 part is part of this line, ensuring a consistent fit and finish for Acura and Honda brake systems.

Technical Description and Features

This disc brake caliper features a single steel piston with an outer diameter of approximately 56.97 mm, providing durable and consistent braking force. The caliper is finished with an oil emulsion coating in gray, which helps resist corrosion and wear. Both the bleeder port and inlet port are sized M10x1.0, matching OEM specifications for proper brake fluid flow and maintenance. The caliper uses silicone grease on floating caliper mounting pins to ensure smooth operation and reduce noise.

Compatible Vehicles and Applications

This Cardone 19-B2917 caliper is compatible with the following makes and models:

• Acura ILX
• Honda Civic
• Honda CR-V

It is designed to replace worn or damaged calipers in these vehicles, restoring braking performance and safety.

Common Issues Addressed by This Caliper

• Low brake pedal caused by air in the brake system
• Brake squeal due to caliper or mounting pin issues
• Vehicle pulling to one side during braking
• Caliper piston corrosion or failure
• Worn or damaged caliper bracket or hardware

Installation Notes and Tips

• Use the included hardware kit for proper installation; mounting bolts are not included and may need to be reused or sourced separately
• Always use the brake fluid type recommended by the vehicle manufacturer (DOT 3, DOT 4, or DOT 5 as specified)
• Apply silicone grease to floating caliper mounting pins to prevent noise and ensure smooth movement
• Bleed the brake system thoroughly after installation to remove air and restore pedal firmness

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. The steel piston and oil emulsion finish contribute to durability and corrosion resistance. Installation hardware is included to facilitate proper mounting. Warranty details are provided by Cardone and typically cover defects in materials and workmanship under normal use.
