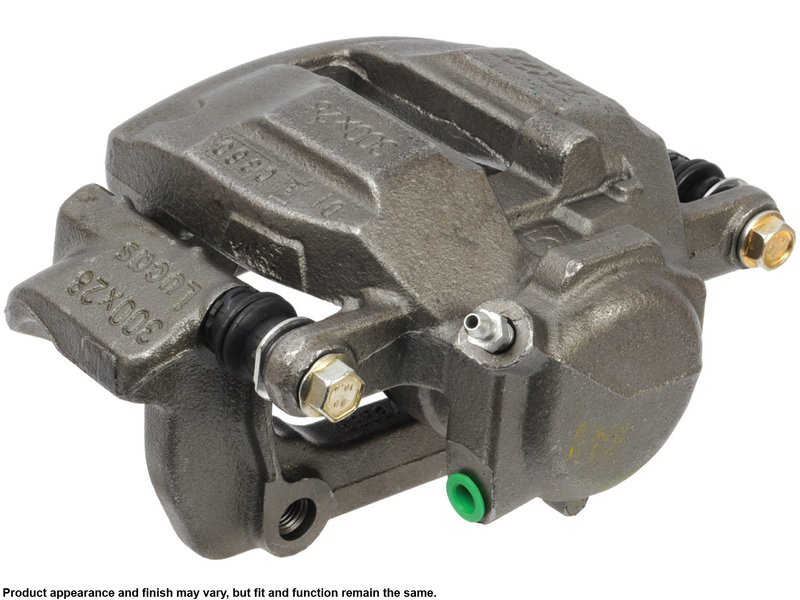

Cardone 19-B3124 Disc Brake Caliper - Front Left

Overview of Cardone Unloaded Caliper w/Bracket 19-B3124

The Cardone Unloaded Caliper w/Bracket 19-B3124 is a remanufactured disc brake caliper designed for select Mercedes-Benz models including the C240, C280, C320, and C350. Engineered with a steel piston and finished with an oil emulsion coating, this caliper offers reliable braking performance and corrosion resistance.

• Compatible with Mercedes-Benz C240, C280, C320, and C350
• Remanufactured disc brake caliper with steel piston
• Includes caliper, bracket, and hardware kit
• Oil emulsion finish in gray color for durability
• Bleeder port size M8x1.25 and inlet port size M10x1.0
• Installation hardware included; mounting bolts not included

About the Cardone Unloaded Caliper w/Bracket Product Line

The Cardone Unloaded Caliper w/Bracket line provides remanufactured brake calipers that come complete with the necessary bracket and hardware kit for installation. This product line focuses on delivering reliable replacement calipers that meet original equipment specifications, ensuring proper fit and function for vehicles like the Mercedes-Benz C-Class models. The unloaded design means brake pads are not included, allowing for flexibility in pad selection.

Product Features and Specifications

This Cardone caliper features a single steel piston with an outer diameter of 57.0992 mm, providing consistent braking force. The gray oil emulsion finish helps protect against rust and wear. The caliper includes a bleeder port sized M8x1.25 and an inlet port sized M10x1.0, compatible with standard brake lines. Installation hardware is included to facilitate mounting, though mounting bolts are not part of the package. The caliper uses silicone grease on floating caliper mounting pins to ensure smooth operation.

Common Brake Issues Addressed by This Caliper

• Low brake pedal caused by air in the brake system
• Vehicle pulling to one side during braking
• Brake squeal due to caliper or hardware issues
• Caliper piston malfunction or corrosion
• Worn or damaged caliper bracket affecting brake performance

Installation Notes and Tips

When installing the Cardone 19-B3124 caliper on Mercedes-Benz C240, C280, C320, or C350 models, ensure the use of the recommended brake fluid type as specified by the vehicle manufacturer. Apply silicone grease to the floating caliper mounting pins to prevent binding and noise. Although the hardware kit is included, verify if mounting bolts are required separately. Bleed the brake system thoroughly to remove any air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. The steel piston construction and protective oil emulsion finish contribute to long service life. Installation hardware is included to support proper mounting. Warranty details are provided by Cardone and typically cover defects in materials and workmanship under normal use.
