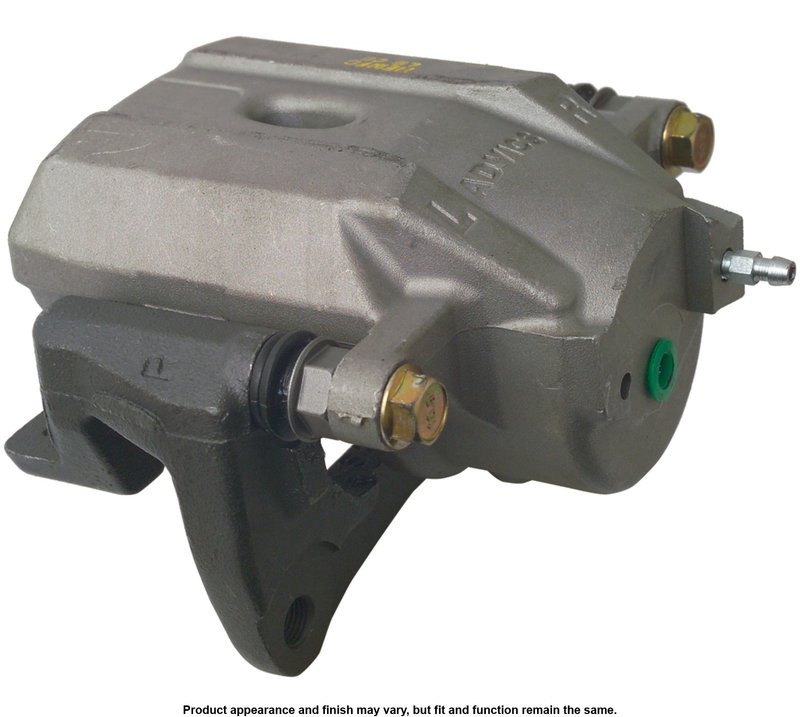

Cardone 19-B3135 Disc Brake Caliper - Front Right

Overview of Cardone Unloaded Caliper w/Bracket for Toyota Prius

The Cardone 19-B3135 Unloaded Caliper w/Bracket is a remanufactured disc brake caliper designed specifically for Toyota Prius models. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with steel piston
• Includes caliper, bracket, and hardware kit
• Compatible with Toyota Prius models
• Bleeder port size: M7x1.0; inlet port size: M10x1.0
• Caliper finish: oil emulsion in gray color
• Installation hardware included; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit for installation. This line is designed to provide a convenient, ready-to-install solution for brake system repairs, eliminating the need to reuse old brackets or hardware. The 19-B3135 model fits Toyota Prius vehicles and features a single steel piston with a 53.9 mm outer diameter, ensuring proper fit and function.

Technical Description and Features

This Cardone disc brake caliper features a steel piston that provides consistent braking force and durability. The caliper is finished with an oil emulsion coating in gray, which helps resist corrosion and wear. It includes a bleeder port sized M7x1.0 and an inlet port sized M10x1.0, compatible with standard brake lines for the Toyota Prius. The package contains the caliper, bracket, and a hardware kit, though mounting bolts are not included. The caliper uses silicone grease on floating caliper mounting pins to ensure smooth operation and prevent seizing.

Common Applications and Problem Solving

• Replacement for worn or leaking brake calipers on Toyota Prius
• Addresses symptoms of low brake pedal often caused by air in the brake system
• Helps resolve uneven braking or vehicle pulling to one side
• Eliminates brake squeal caused by caliper issues
• Restores proper brake function when calipers are suspected to cause pedal softness

Installation Notes and Tips

When installing the Cardone 19-B3135 caliper on a Toyota Prius, always use the recommended brake fluid specified by the vehicle manufacturer. The caliper comes with new hardware and a mounting bracket, but mounting bolts must be sourced separately. Apply silicone grease to the floating caliper mounting pins to ensure smooth movement and prevent corrosion. Bleed the brake system thoroughly to remove any air and restore firm brake pedal feel.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. The steel piston and oil emulsion finish contribute to long-lasting performance. Installation hardware is included to facilitate proper mounting. Warranty details are provided by Cardone and typically cover defects in materials and workmanship, ensuring confidence in the product's reliability.
