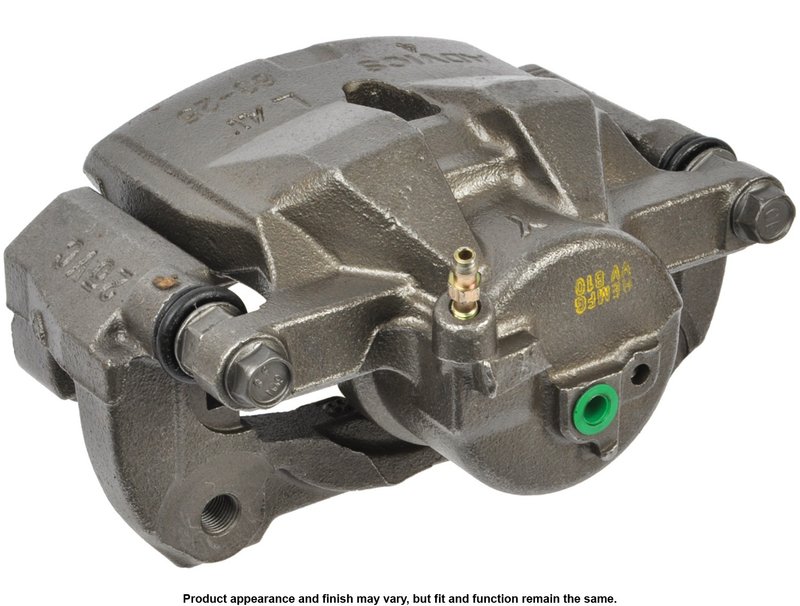

Cardone 19-B3196A Disc Brake Caliper - Front Left

Overview of Cardone Unloaded Caliper w/Bracket 19-B3196A

The Cardone Unloaded Caliper w/Bracket 19-B3196A is a remanufactured disc brake caliper designed for reliable brake performance. This caliper is compatible with select Lexus, Scion, and Toyota models, including the HS250h, Prius V, RAV4, and xB.

• Remanufactured disc brake caliper with steel piston
• Includes caliper, bracket, and hardware kit for installation
• Gray oil emulsion finish for corrosion resistance
• Bleeder port size: M7x1.0; inlet port size: M10x1.0
• Installation hardware included; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the necessary bracket and hardware kit for installation. This line is designed to provide a cost-effective replacement option that meets original equipment specifications. The 19-B3196A model features a single steel piston with a 63.373 mm outer diameter, ensuring compatibility and performance for the specified vehicle applications.

Technical Description and Features

This disc brake caliper features a durable steel piston and a gray oil emulsion finish that helps protect against corrosion. The caliper is designed with a bleeder port size of M7x1.0 and an inlet port size of M10x1.0, matching OEM specifications for proper brake fluid flow. The package includes the caliper, mounting bracket, and a hardware kit, although mounting bolts are not included. The caliper uses silicone grease on floating caliper mounting pins to ensure smooth operation and reduce wear.

Compatible Vehicles and Applications

• Lexus HS250h
• Scion xB
• Toyota Prius V
• Toyota RAV4

This caliper is designed specifically for these models, providing a direct replacement that maintains proper braking function and safety.

Common Brake Issues Addressed

• Low brake pedal caused by air in the brake system
• Brake squeal due to caliper or hardware issues
• Vehicle pulling to one side during braking
• Caliper-related brake fluid leaks or piston malfunction
• Worn or damaged caliper components affecting brake performance

Installation Notes and Tips

When installing the Cardone 19-B3196A caliper, use the included hardware kit for proper mounting. Apply silicone grease to the floating caliper mounting pins to ensure smooth movement. Always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Bleed the brake system thoroughly to remove any air and restore firm brake pedal feel. Note that mounting bolts are not included and must be reused or sourced separately.

Quality Assurance and Warranty

This remanufactured caliper meets or exceeds OEM standards for fit, form, and function. Cardone provides a limited warranty covering defects in materials and workmanship. The caliper is tested to ensure reliable braking performance and durability under normal operating conditions.
