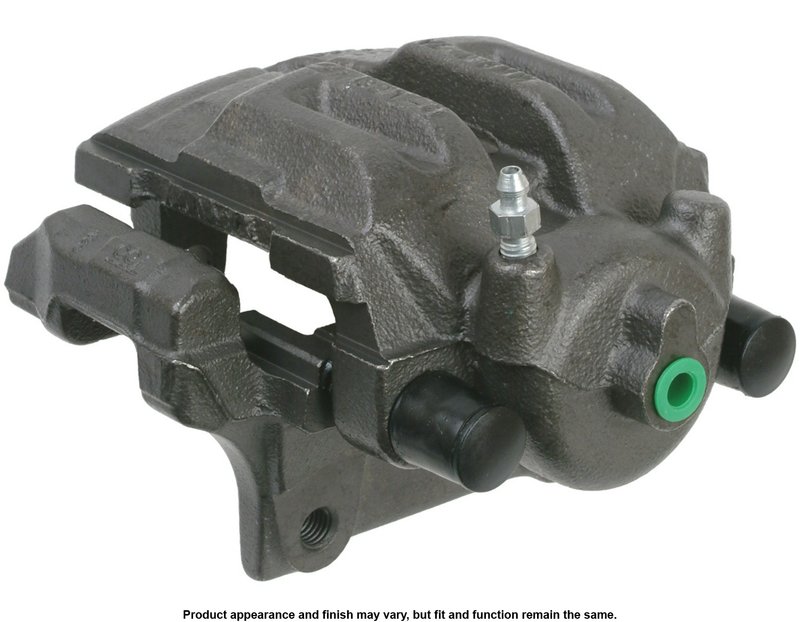

Cardone 19-B3226 Disc Brake Caliper - Rear Left

Overview of Cardone Unloaded Caliper w/Bracket 19-B3226

The Cardone Unloaded Caliper w/Bracket 19-B3226 is a remanufactured disc brake caliper designed for select BMW models including the 323i, 325i, 325xi, 328i, 328i xDrive, 328xi, and X1. This caliper features a durable oil emulsion finish and comes with a complete hardware kit for installation.

• Remanufactured disc brake caliper with steel piston
• Includes caliper, bracket, and installation hardware kit
• Oil emulsion gray finish for corrosion resistance
• Bleeder port size: M8x1.25; inlet port size: M10x1.0
• Compatible with BMW 323i, 325i, 325xi, 328i, 328i xDrive, 328xi, and X1 models

Cardone Unloaded Caliper w/Bracket Product Line Details

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured brake calipers that come complete with mounting brackets and necessary hardware kits. This line is designed to provide a reliable replacement solution for vehicles requiring a disc brake caliper assembly without brake pads included. The 19-B3226 model maintains OEM specifications such as piston size and port dimensions to ensure proper fit and function on compatible BMW vehicles.

Product Features and Specifications

This Cardone caliper features a single steel piston with an outer diameter of approximately 41.94 mm, providing consistent braking force. The caliper’s gray oil emulsion finish helps protect against rust and wear. It includes a bleeder port sized M8x1.25 and an inlet port sized M10x1.0, matching OEM brake hydraulic connections. Installation hardware is included, though mounting bolts are not provided. The caliper uses silicone grease on floating caliper mounting pins to ensure smooth operation.

Common Applications and Problem Solving

• Replacement for worn or leaking calipers on BMW 323i, 325i, 325xi, 328i, 328i xDrive, 328xi, and X1
• Addresses symptoms such as low brake pedal caused by air in the brake system
• Helps resolve uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper issues
• Restores proper brake hydraulic function with OEM-compatible ports and piston design

Installation Notes and Tips

When installing the Cardone 19-B3226 caliper, use the included hardware kit for secure mounting. Apply silicone grease to the floating caliper mounting pins to prevent binding. Always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Bleed the brake system thoroughly to remove any air and ensure a firm brake pedal. Note that mounting bolts are not included and must be reused or sourced separately.

Quality Assurance and Warranty

This remanufactured caliper meets Cardone’s quality standards for fit, form, and function. It is designed to match OEM specifications for reliable braking performance on compatible BMW models. Installation hardware is included to facilitate proper assembly. Warranty details should be confirmed with the distributor or retailer, as Cardone typically offers limited warranties on remanufactured brake components.
