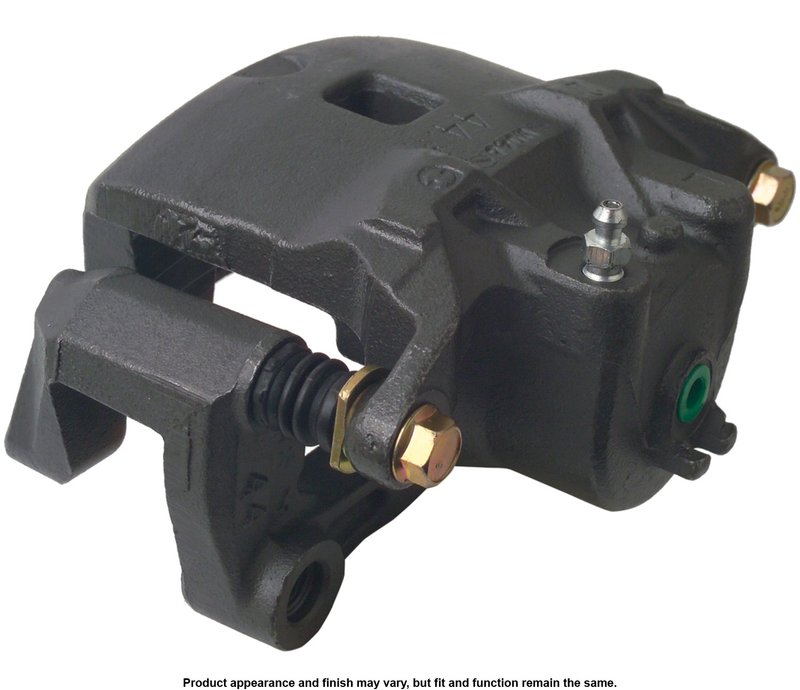

Cardone 19-B3306 Disc Brake Caliper - Front Left

Overview of Cardone Unloaded Caliper w/Bracket for Nissan Sentra

The Cardone 19-B3306 Unloaded Caliper w/Bracket is a remanufactured disc brake caliper designed specifically for Nissan Sentra models. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with bracket and hardware kit included
• Steel piston with a 57.1 mm outer diameter for consistent braking force
• Bleeder and inlet port size: M10x1.0 for proper hydraulic connection
• Oil emulsion finish in gray for corrosion resistance
• Installation hardware included; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit. This configuration allows for a streamlined installation process, reducing the need to reuse old or worn components. The unloaded design means brake pads are not included, providing flexibility for customers to select pads that best suit their braking needs.

Technical Description and Features

This Cardone 19-B3306 caliper features a single steel piston with a diameter of 57.0992 mm, ensuring effective hydraulic pressure application for the Nissan Sentra's braking system. The caliper is finished with an oil emulsion coating in gray, which helps protect against rust and wear. Both the bleeder port and inlet port are sized M10x1.0, matching OEM specifications for proper brake fluid flow and maintenance. The product includes a hardware kit for installation, although mounting bolts are not part of the package.

Common Applications and Problem Solving

• Replacement for worn or leaking Nissan Sentra disc brake calipers
• Resolves issues related to uneven brake pad wear or pulling to one side during braking
• Addresses symptoms of low brake pedal height caused by caliper malfunction
• Eliminates brake squeal caused by caliper or mounting pin issues
• Restores proper hydraulic pressure and brake fluid flow in the brake system

Installation Notes and Tips

When installing the Cardone 19-B3306 caliper on a Nissan Sentra, ensure the use of OEM recommended brake fluid, typically DOT 3 or DOT 4. A silicone grease is recommended for lubricating the floating caliper mounting pins to prevent noise and ensure smooth operation. Although the hardware kit is included, mounting bolts must be sourced separately if needed. Always bleed the brake system thoroughly to remove air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. Cardone provides a limited warranty covering defects in materials and workmanship, ensuring dependable performance for Nissan Sentra brake system repairs. Using this part helps maintain the safety and reliability of your vehicle's braking system.
