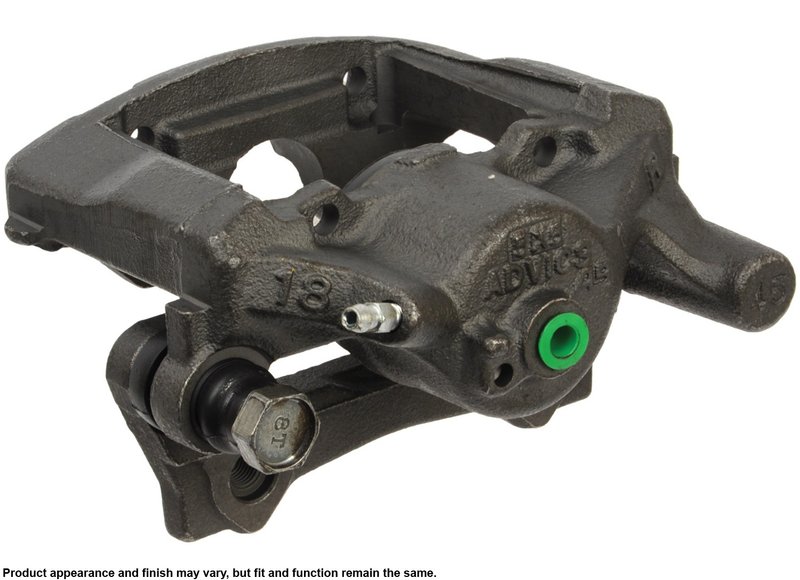

Cardone 19-B3312 Disc Brake Caliper - Rear Right

Overview of Cardone Unloaded Caliper w/Bracket 19-B3312

The Cardone Unloaded Caliper w/Bracket 19-B3312 is a remanufactured disc brake caliper designed for select Lexus models including GS350, GS430, GS450h, GS460, and IS350. Engineered with a steel piston and finished with an oil emulsion coating, this caliper offers reliable braking performance and corrosion resistance.

• Remanufactured disc brake caliper with bracket and hardware kit included
• Compatible with Lexus GS350, GS430, GS450h, GS460, and IS350 models
• Steel piston with 44.45 mm outer diameter for consistent braking force
• Oil emulsion finish in gray for enhanced corrosion protection
• Includes bleeder port size M7x1.0 and inlet port size M10x1.0
• Installation hardware included; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line provides remanufactured calipers that come complete with the mounting bracket and necessary hardware kit. This setup simplifies installation by delivering a ready-to-mount assembly, ensuring proper fitment and alignment for the brake system. The unloaded design means brake pads are not included, allowing for flexibility in pad selection based on vehicle requirements.

Technical Description and Features

This disc brake caliper features a single steel piston with a 44.45 mm outer diameter, providing durable and consistent braking pressure. The caliper is finished with an oil emulsion coating in gray, which helps resist rust and wear over time. The bleeder port is sized M7x1.0, and the inlet port is M10x1.0, matching OEM specifications for proper hydraulic connection. The package includes the caliper, bracket, and a hardware kit, though mounting bolts are not supplied. This remanufactured part is designed to meet or exceed OEM standards for fit, form, and function on compatible Lexus vehicles.

Common Applications and Problem Solving

• Replacement for worn or leaking calipers on Lexus GS350, GS430, GS450h, GS460, and IS350
• Addresses issues with low brake pedal caused by caliper malfunction
• Helps resolve uneven braking or vehicle pull to one side during braking
• Eliminates brake squeal related to caliper hardware or piston problems
• Restores proper hydraulic pressure and brake fluid flow in the brake system

Installation Notes and Tips

When installing the Cardone 19-B3312 caliper, use the included hardware kit for secure mounting. Note that mounting bolts are not included and should be reused or replaced as needed. Apply silicone grease to floating caliper mounting pins to ensure smooth operation. Always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Bleed the brake system thoroughly to remove any air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM specifications for performance and durability. Cardone provides a limited warranty covering defects in materials and workmanship, ensuring confidence in the product's reliability when installed on compatible Lexus GS350, GS430, GS450h, GS460, and IS350 models.
