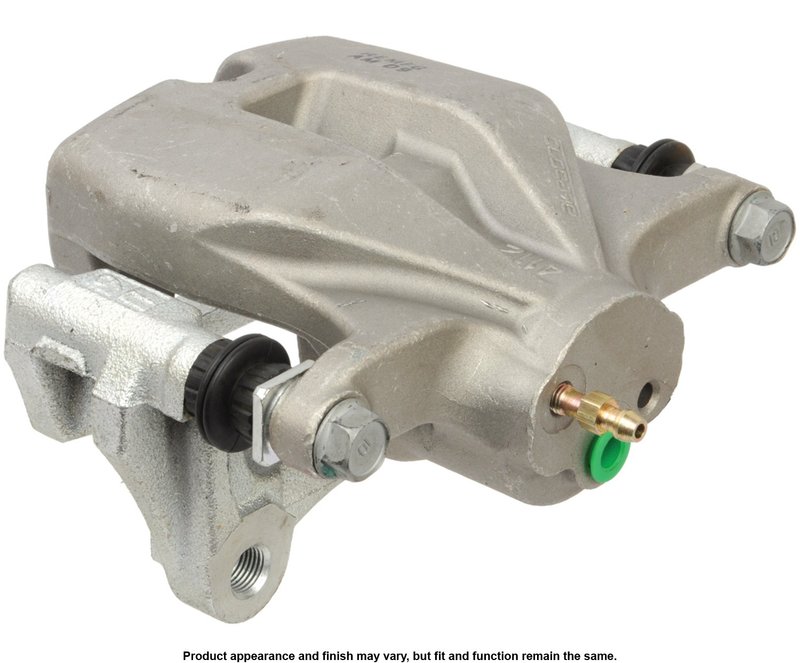

Cardone 19-B3350 Disc Brake Caliper - Rear Right

Overview of Cardone Unloaded Caliper w/Bracket for Toyota Highlander

The Cardone 19-B3350 Unloaded Caliper w/Bracket is a remanufactured disc brake caliper designed specifically for Toyota Highlander models. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with bracket and hardware kit included
• Steel piston with 41.148 mm outer diameter for consistent braking force
• Bleeder port size M7x1.0 and inlet port size M10x1.0 for proper hydraulic connection
• Oil emulsion finish in gray for corrosion resistance
• Installation hardware included; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit. This design simplifies installation by providing all essential components except mounting bolts, ensuring compatibility and ease of replacement for Toyota Highlander brake systems.

Technical Description and Features

This Cardone 19-B3350 caliper features a single steel piston with a 41.148 mm diameter, providing reliable hydraulic pressure transfer for effective disc brake operation. The caliper’s oil emulsion finish in gray helps protect against corrosion and wear. It includes a bleeder port sized M7x1.0 and an inlet port sized M10x1.0, matching OEM specifications for proper brake fluid flow. The package contains the caliper, bracket, and a hardware kit, but brake pads and mounting bolts are not included.

Common Applications and Problem Solving

• Replaces worn or leaking calipers on Toyota Highlander models
• Addresses brake pull or uneven braking caused by caliper malfunction
• Resolves symptoms of low brake pedal often linked to caliper issues
• Eliminates brake squeal related to caliper hardware or piston problems
• Restores proper brake fluid sealing and pressure with steel piston design

Installation Notes and Tips

• Use the included hardware kit for mounting the caliper and bracket
• Apply silicone grease on floating caliper mounting pins as recommended
• Always use brake fluid specified by the vehicle manufacturer (DOT 3 or DOT 4)
• Bleed the brake system thoroughly to remove air and ensure firm pedal feel
• Mounting bolts are not included; reuse original bolts or source OEM replacements

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. The steel piston and quality finish contribute to long service life. Installation hardware is included to facilitate proper mounting. Warranty details are provided by Cardone and typically cover defects in materials and workmanship under normal use.
