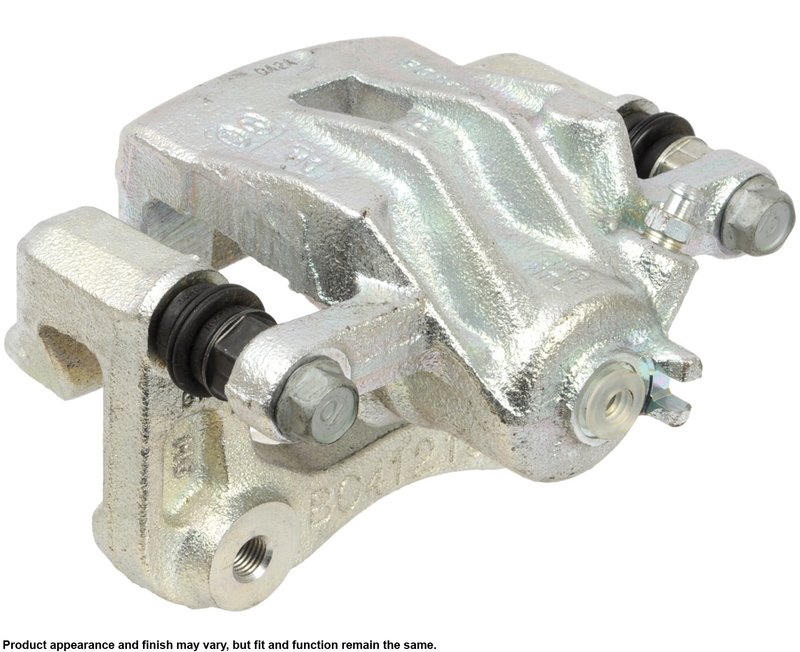

Cardone 19-B3413 Disc Brake Caliper - Rear Left

Overview of Cardone Unloaded Caliper w/Bracket 19-B3413

The Cardone Unloaded Caliper w/Bracket 19-B3413 is designed for Hyundai Azera and Sonata models, providing reliable braking performance. This remanufactured disc brake caliper features a steel piston and comes with a complete hardware kit for installation.

• Compatible with Hyundai Azera and Sonata
• Remanufactured disc brake caliper with steel piston
• Includes caliper, bracket, and installation hardware kit
• Bleeder and inlet port size: M10x1.0
• Oil emulsion finish in gray color for corrosion resistance

Product Features and Specifications

This Cardone brake caliper features a single steel piston with an outer diameter of 33.909 mm, ensuring consistent braking force. The caliper is finished with an oil emulsion coating in gray, which helps protect against rust and wear. Both the bleeder port and inlet port have an M10x1.0 thread size, compatible with original equipment specifications. The package includes the caliper, mounting bracket, and a hardware kit, although mounting bolts are not included. This remanufactured unit is designed to meet or exceed OEM standards for fit and function.

About the Unloaded Caliper w/Bracket Product Line

The Cardone Unloaded Caliper w/Bracket line offers remanufactured disc brake calipers that come complete with brackets and necessary hardware kits for streamlined installation. These calipers are designed to replace worn or damaged units on specific vehicle models, such as the Hyundai Azera and Sonata, providing a cost-effective alternative to new parts while maintaining reliable braking performance.

Common Applications and Problem Resolution

• Replaces worn or leaking calipers on Hyundai Azera and Sonata
• Addresses low brake pedal issues caused by caliper malfunction
• Resolves uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper hardware or piston problems
• Restores proper brake fluid flow with correct bleeder and inlet port sizes

Installation Notes and Tips

Installation of the Cardone 19-B3413 caliper should follow OEM guidelines. The included hardware kit contains necessary components except for mounting bolts, which must be sourced separately. Use silicone grease on floating caliper mounting pins to ensure smooth operation. Always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Bleed the brake system thoroughly to remove air and prevent low brake pedal symptoms.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM specifications for durability and performance. The steel piston construction and oil emulsion finish contribute to long service life. Installation hardware is included to facilitate proper fitment. Warranty details are provided by Cardone and typically cover defects in materials and workmanship under normal use.
