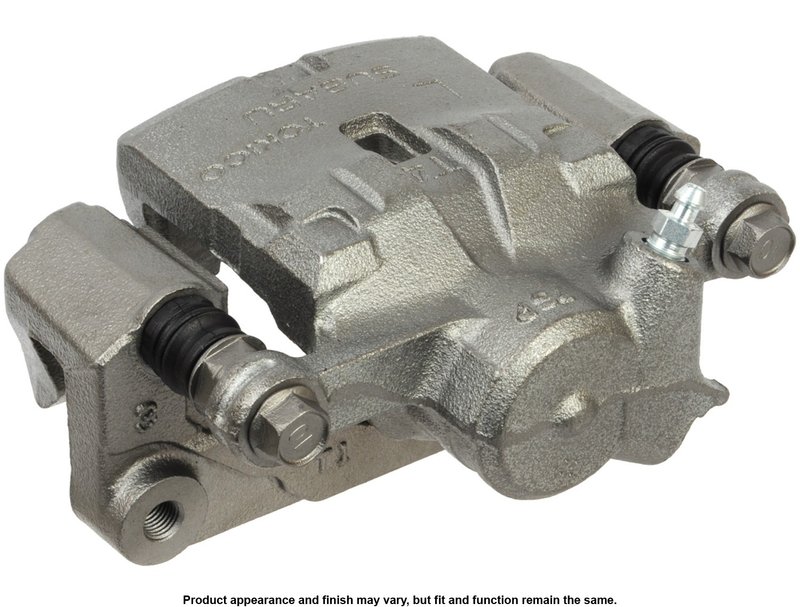

Cardone 19-B3425 Disc Brake Caliper - Rear Left

Overview of Cardone Unloaded Caliper w/Bracket 19-B3425

The Cardone Unloaded Caliper w/Bracket 19-B3425 is a remanufactured disc brake caliper designed specifically for Subaru Forester, Impreza, and WRX models. Engineered to meet OEM specifications, this caliper features a durable oil emulsion finish and a steel piston for reliable braking performance.

• Remanufactured disc brake caliper with bracket and hardware kit included
• Compatible with Subaru Forester, Impreza, and WRX
• Steel piston with 38.02 mm outer diameter for consistent braking force
• Oil emulsion gray finish for corrosion resistance
• Bleeder and inlet port size: M10x1.0 for proper hydraulic connection
• Includes installation hardware; mounting bolts not included

Cardone Unloaded Caliper w/Bracket Product Line Details

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit. This line is designed to simplify installation by providing all essential components except mounting bolts, ensuring compatibility and ease of replacement for specific vehicle applications such as the Subaru Forester, Impreza, and WRX. The unloaded design means brake pads are not included, allowing for flexibility in pad selection.

Technical Specifications and Features

This Cardone 19-B3425 caliper features a single steel piston with a precise 38.02 mm outer diameter, providing consistent hydraulic pressure for effective braking. The caliper’s oil emulsion finish in gray offers protection against rust and wear. Both the bleeder port and inlet port are sized M10x1.0, matching OEM brake hydraulic fittings. The product is remanufactured to meet strict quality standards and includes a hardware kit to assist with installation, though mounting bolts must be sourced separately.

Common Applications and Problem Solving

• Replacement for worn or leaking calipers on Subaru Forester, Impreza, and WRX
• Resolves issues with uneven brake pad wear or pulling to one side during braking
• Addresses symptoms of low brake pedal often caused by caliper malfunction
• Eliminates brake squeal related to caliper hardware or piston problems
• Restores proper hydraulic pressure and brake fluid flow in the brake system

Installation Notes and Tips

• Use silicone grease on floating caliper mounting pins to ensure smooth operation
• Always use brake fluid recommended by the vehicle manufacturer (DOT 3 or DOT 4 as specified)
• Verify bleeder and inlet port sizes (M10x1.0) match your vehicle’s brake lines
• New hardware is included, but mounting bolts are not; source bolts as needed
• Bleed the brake system thoroughly after installation to remove air and restore pedal firmness

Quality Assurance and Warranty

Cardone remanufactured calipers undergo rigorous testing to meet OEM standards for fit, form, and function. The 19-B3425 caliper is backed by Cardone’s quality assurance processes, ensuring reliable performance and durability. Installation hardware is included to facilitate proper mounting. For warranty details, refer to Cardone’s official warranty policy applicable to remanufactured brake components.
