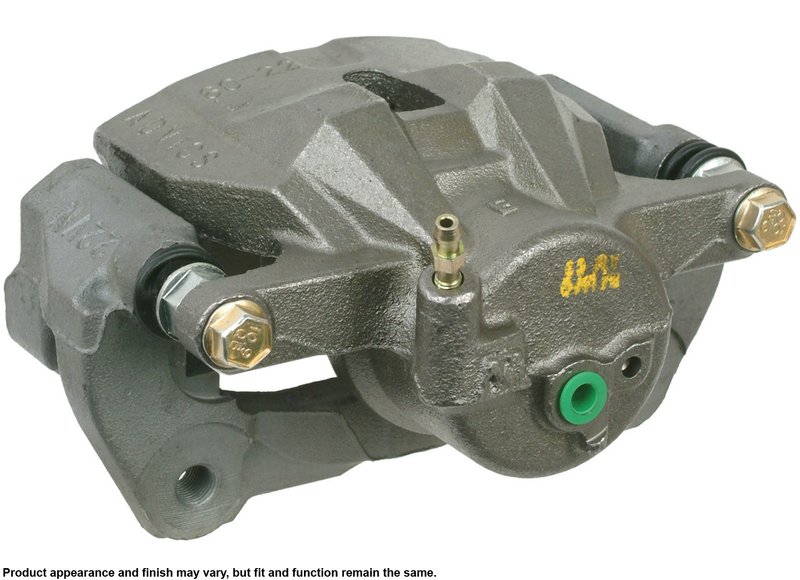

Cardone 19-B3434 Disc Brake Caliper - Front Left

Overview of Cardone Unloaded Caliper w/Bracket 19-B3434

The Cardone Unloaded Caliper w/Bracket 19-B3434 is a remanufactured disc brake caliper designed for select Pontiac, Scion, and Toyota models. Engineered with a steel piston and an oil emulsion finish, this caliper ensures reliable braking performance for vehicles like the Toyota Corolla, Matrix, Vibe, and Scion xD.

• Remanufactured disc brake caliper with bracket and hardware kit included
• Steel piston with a 60.17 mm outer diameter for consistent braking force
• Oil emulsion gray finish for corrosion resistance
• Bleeder port size M7x1.0 and inlet port size M10x1.0 for proper hydraulic connection
• Installation hardware included; mounting bolts not included

About the Cardone Unloaded Caliper w/Bracket Product Line

The Cardone Unloaded Caliper w/Bracket line provides remanufactured brake calipers that come complete with the necessary bracket and hardware kit for installation. This product line focuses on delivering reliable, ready-to-install calipers that meet original equipment specifications. The 19-B3434 model is part of this line, offering a steel piston design and a durable oil emulsion finish to maintain braking efficiency and longevity.

Detailed Product Description

This Cardone disc brake caliper features a single steel piston with a 60.1726 mm outer diameter, designed to provide consistent and even pressure on the brake pads. The gray oil emulsion finish helps protect the caliper from rust and corrosion, extending its service life. The caliper includes a bleeder port sized M7x1.0 and an inlet port sized M10x1.0, ensuring compatibility with the brake hydraulic system of compatible vehicles. The package contains the caliper, bracket, and a hardware kit for installation, although mounting bolts are not included. This remanufactured caliper is suitable for use on Pontiac, Scion, and Toyota models such as the Corolla, Matrix, Vibe, and xD.

Common Applications and Issues Addressed

• Replacement for worn or leaking disc brake calipers on Toyota Corolla, Matrix, Vibe, and Scion xD
• Resolves brake pedal issues caused by caliper malfunction or air in the brake lines
• Addresses uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper hardware or piston problems
• Restores proper brake fluid flow and pressure with correct bleeder and inlet port sizes

Installation Notes and Tips

• Use silicone grease on floating caliper mounting pins to ensure smooth operation
• Always use brake fluid recommended by the vehicle manufacturer (DOT 3, DOT 4, or DOT 5 as specified)
• New hardware is included with the caliper, but mounting bolts must be reused or sourced separately
• Bleed the brake system thoroughly after installation to remove air and restore firm brake pedal feel
• Verify compatibility with your specific Pontiac, Scion, or Toyota model before installation

Quality Assurance and Warranty

This Cardone remanufactured caliper undergoes rigorous testing to meet or exceed original equipment standards. The steel piston and oil emulsion finish contribute to durability and corrosion resistance. Installation hardware is included to facilitate proper mounting. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship.
